Design Drawing Fee

The design drawing and signing fee does not include permit application fees or any overhead costs.

Foundation Work – 14 x 60 m. (Piled Foundation)
(Excluding land filling and leveling work)

Piling – 22 piles with footings at each column point as per structural design.
Ground Beam – Size 20 x 50 cm around the building.
Concrete Slab on Piles – Load capacity 1 ton/sqm, thickness 15 cm, with 9 mm wire mesh @ 30 cm spacing.

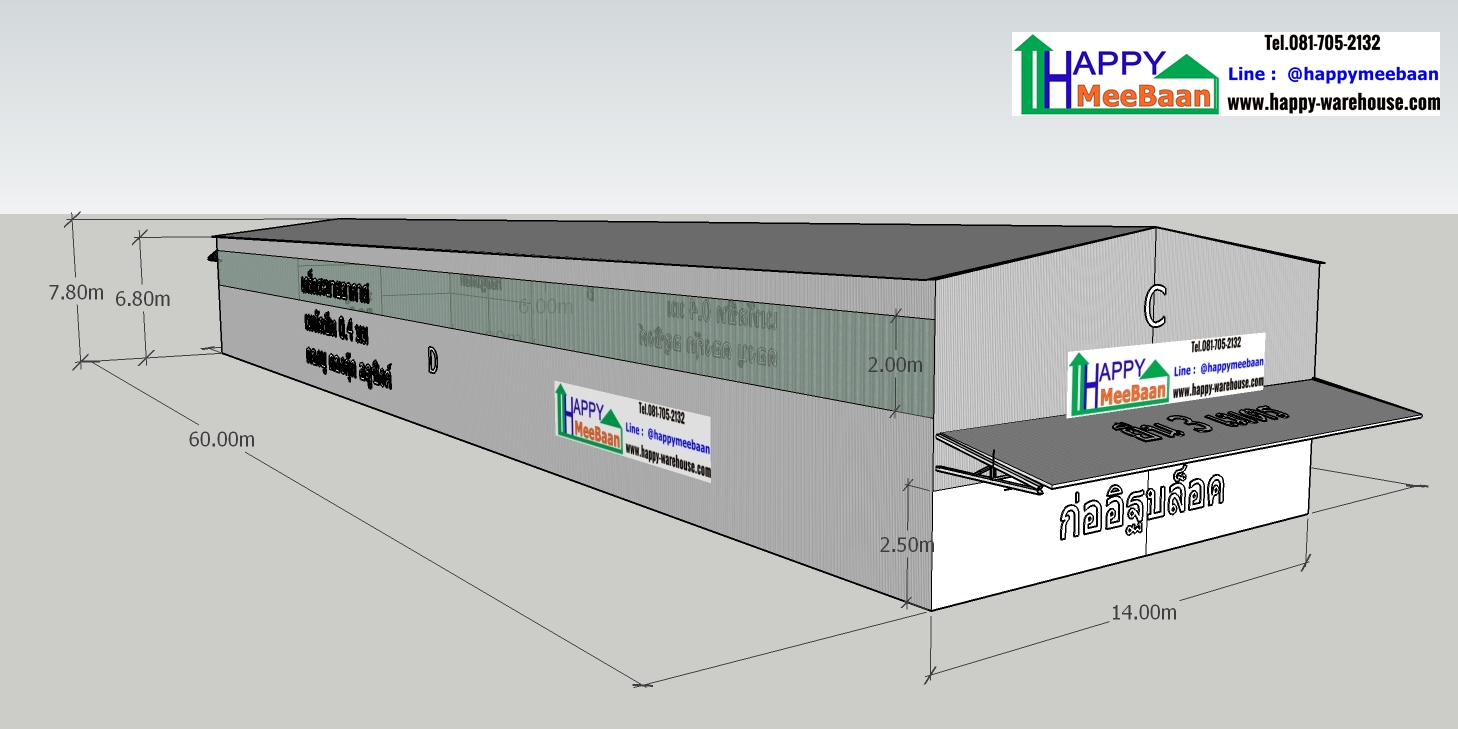

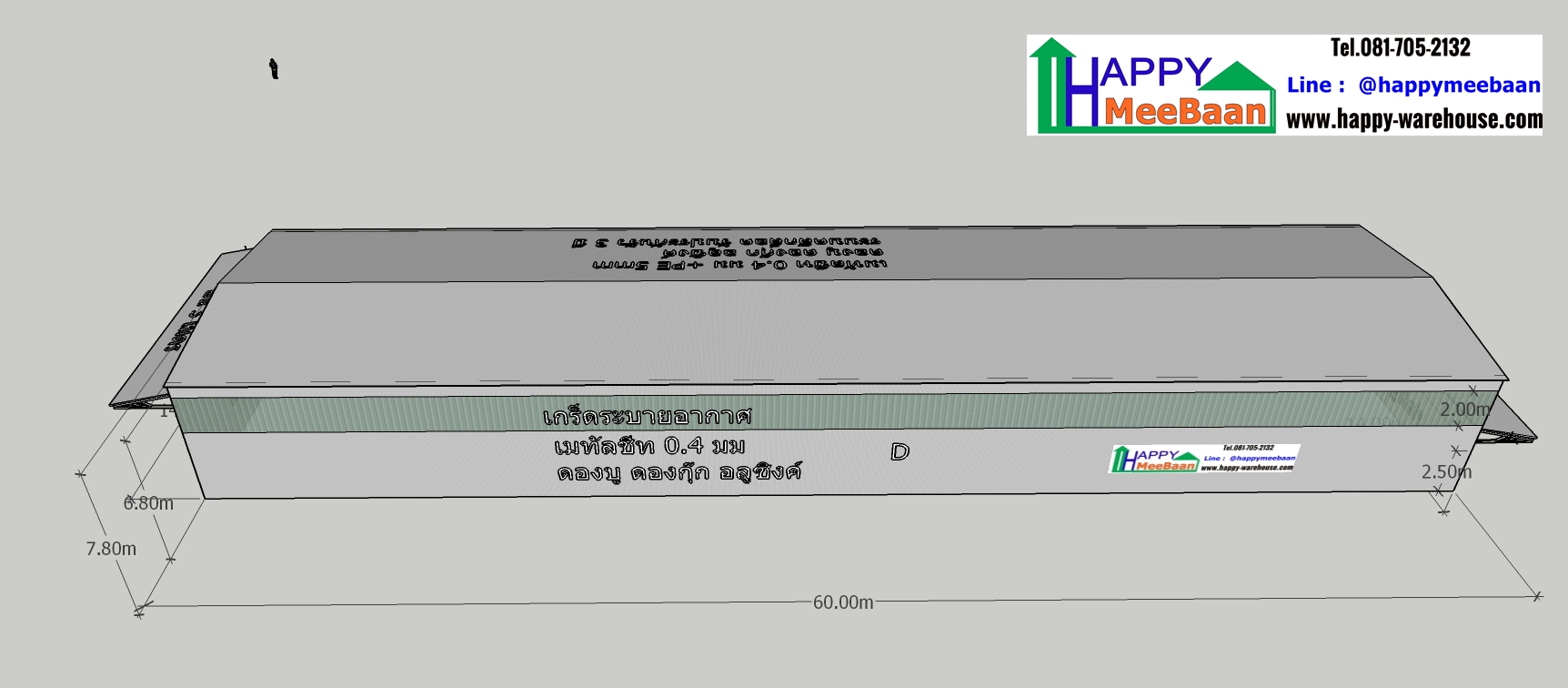

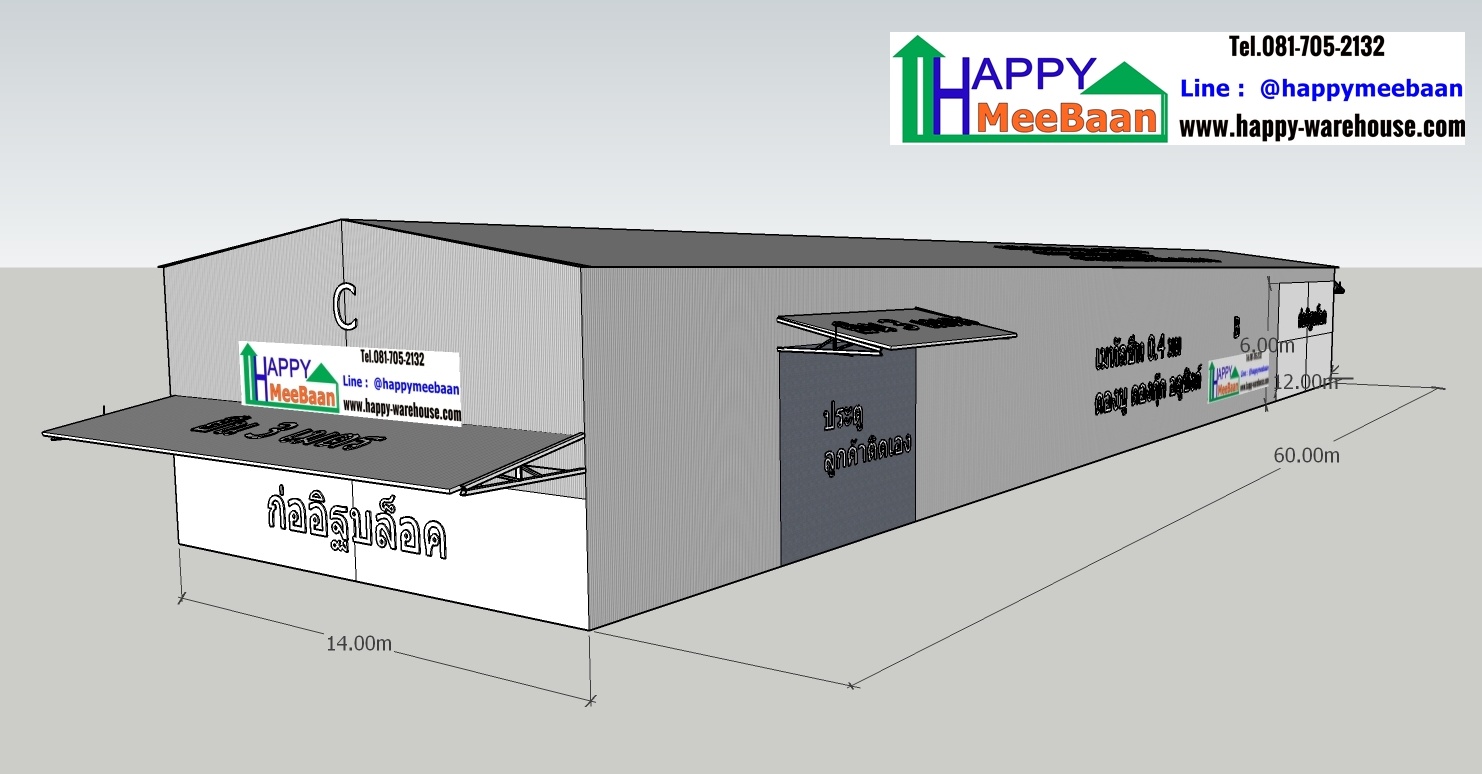

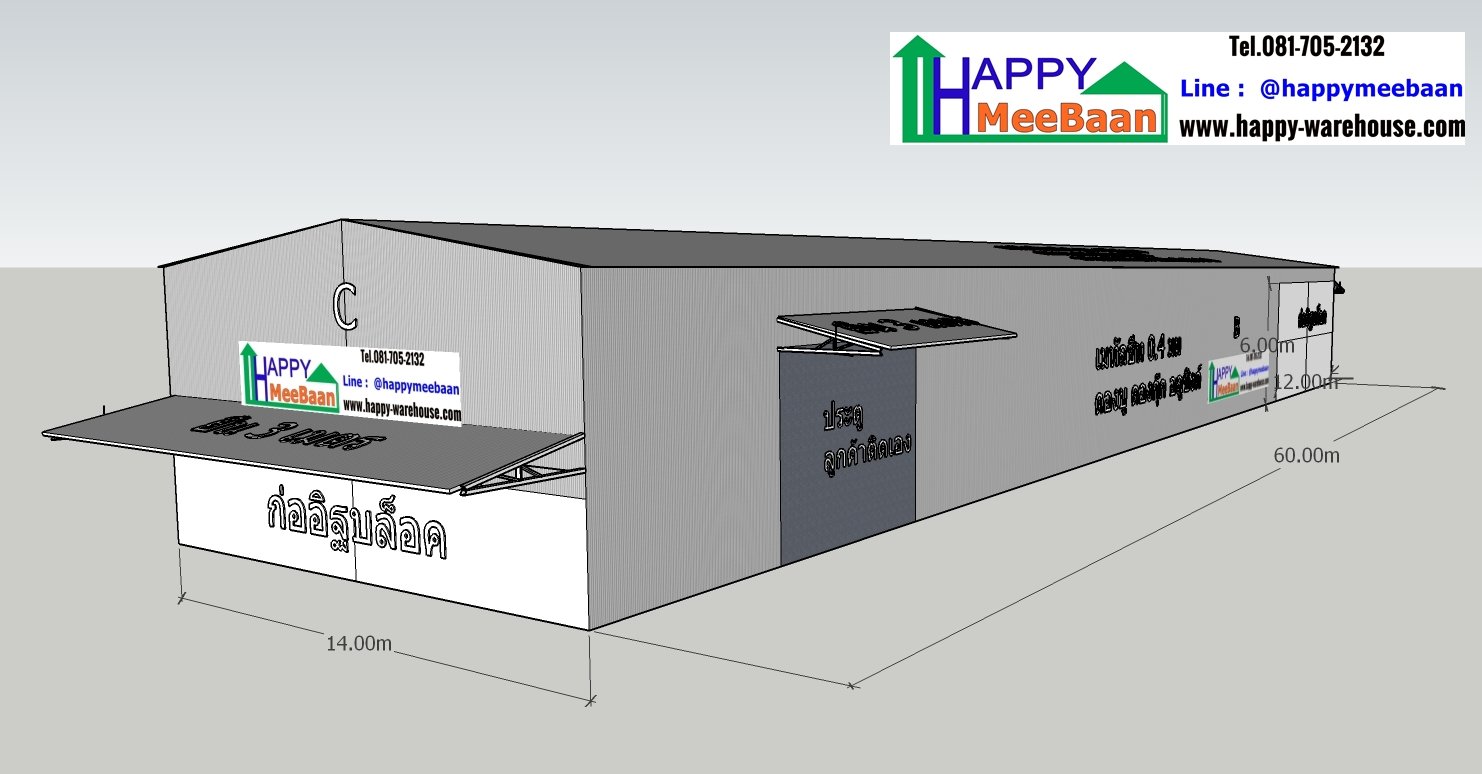

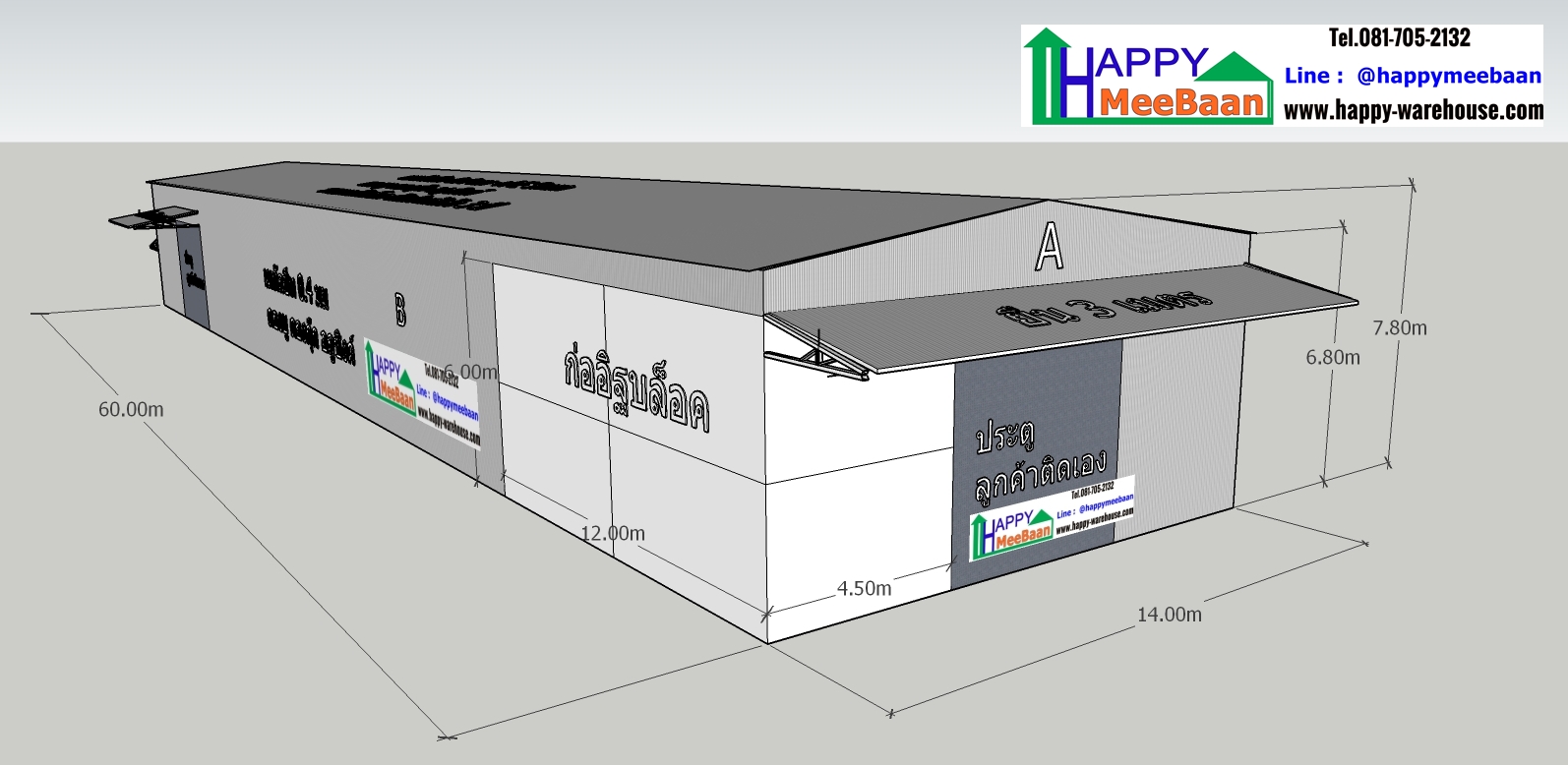

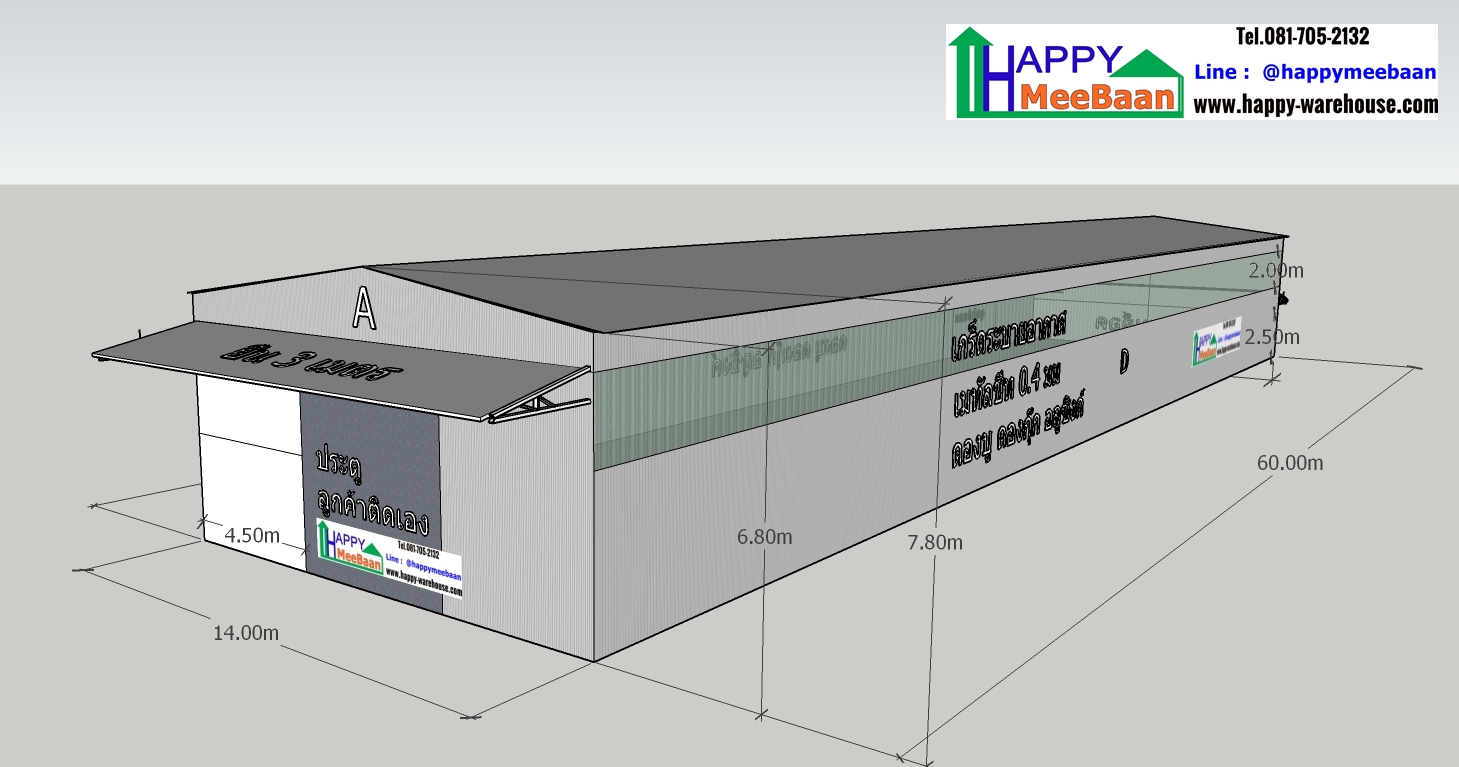

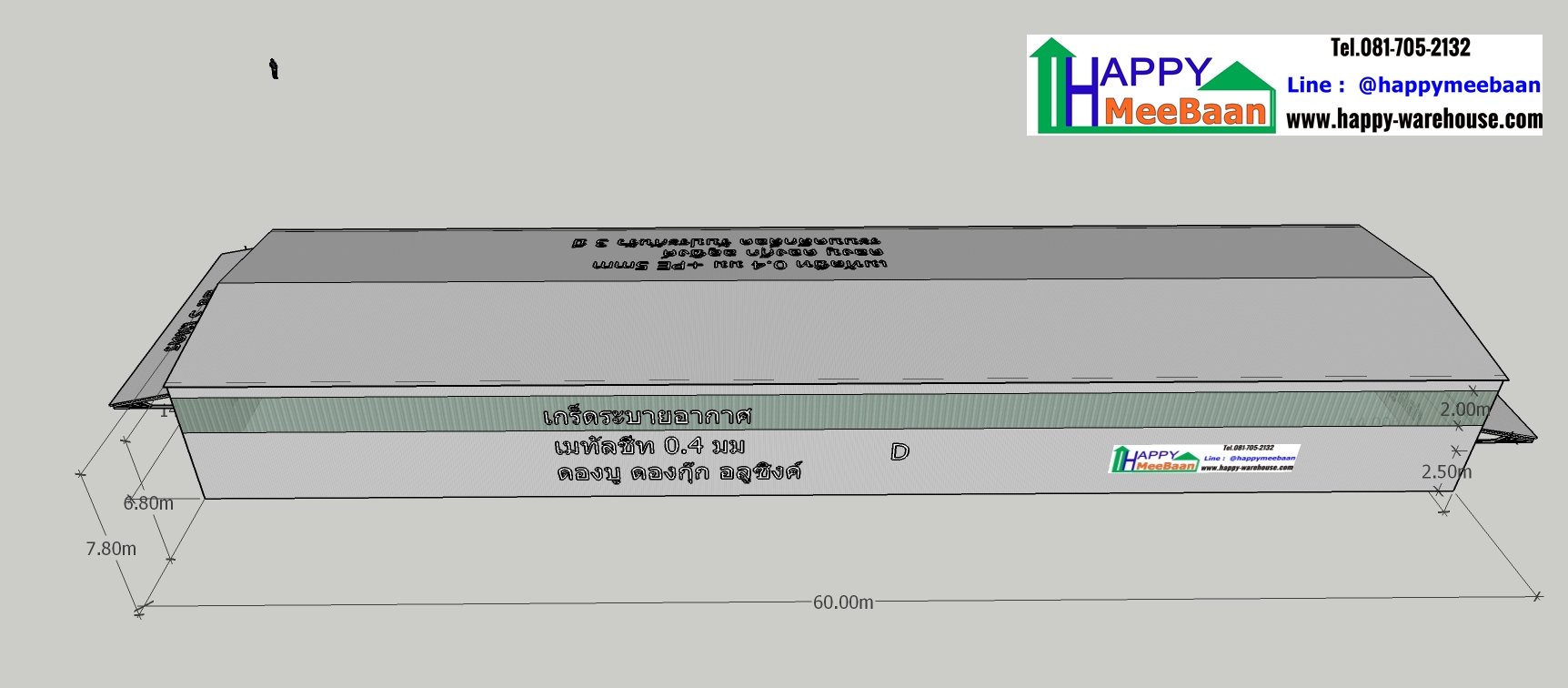

Warehouse Structure – Model HWHC 14 x 60 m., Height 6.8 m.
(Column height 6 m + Truss height 0.8 m)

Specifications:

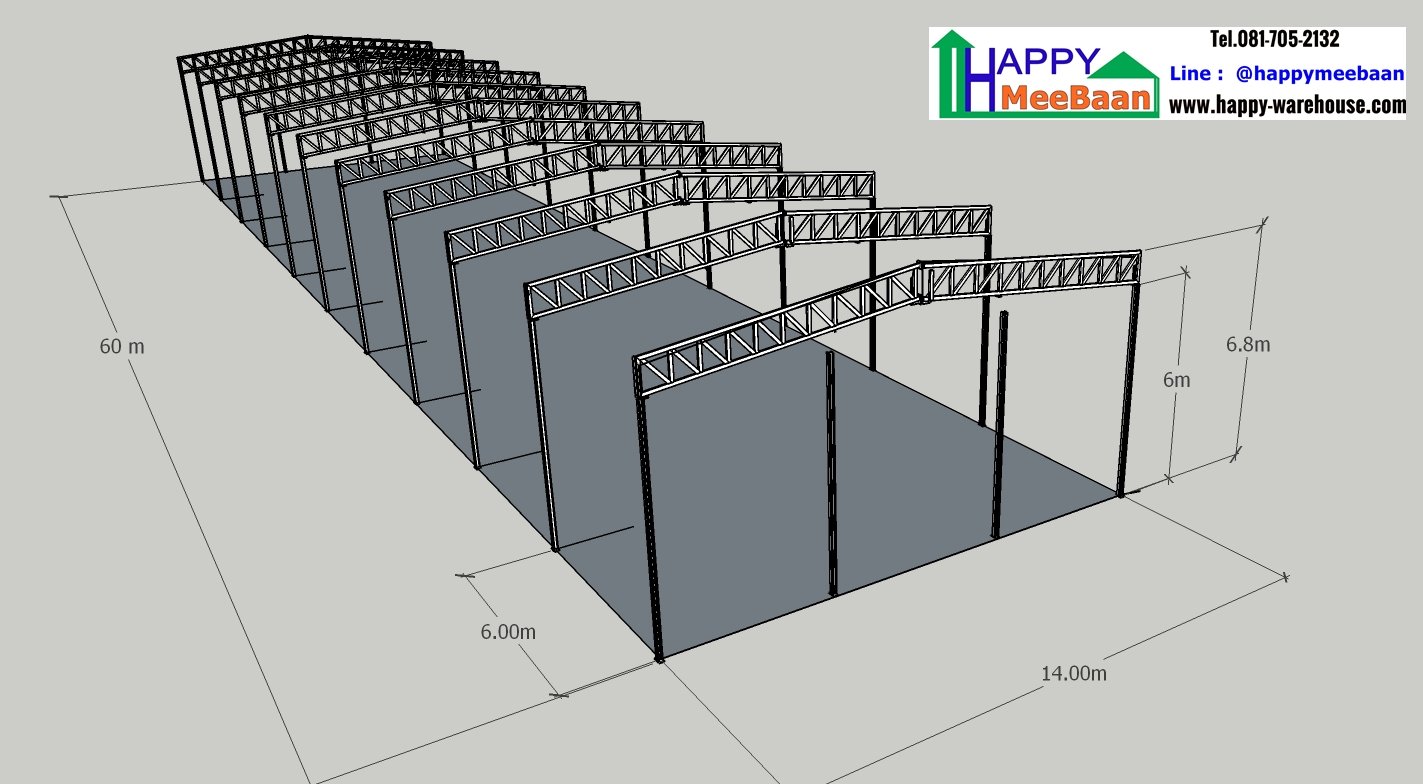

Columns & Main Structure:

Wide Flange Steel WF 250 x 125 mm columns.
Roof bracing: Steel box 50 x 50 x 1.2 mm, height 50 cm.
Roof truss (HC & CT) 2 x 4 x 1.5 mm, height 80 cm.
Roofing:

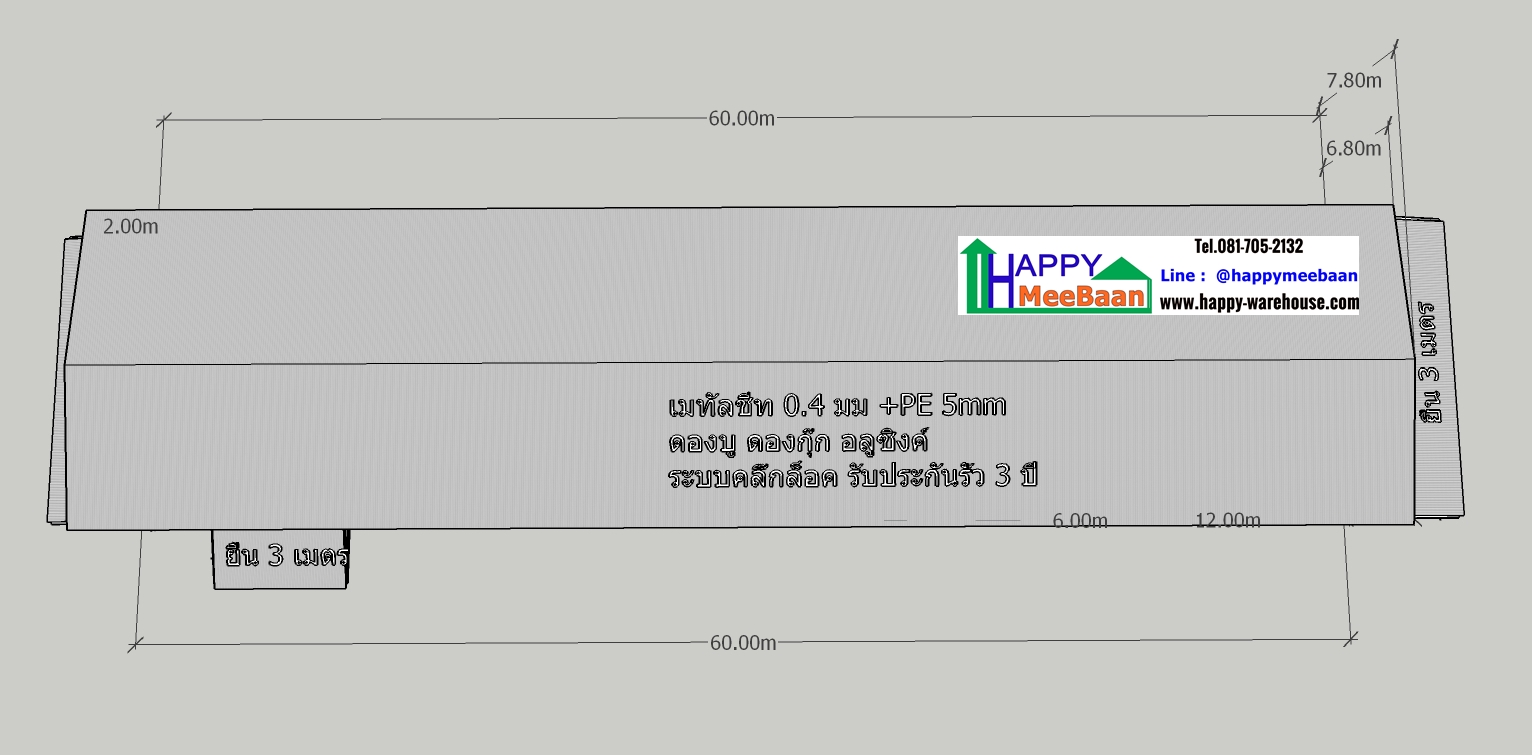

Metal sheet 0.4 mm Aluzinc (Dongbu, Dongkuk brand) + 5 mm PE insulation.
Clip-lock roofing system to prevent leakage.
Galvanized roof purlins 1.9 mm thick, spacing 1 m.
Walls:

Metal sheet 0.4 mm Aluzinc (Dongbu, Dongkuk brand).
Galvanized wall purlins 1.0 mm thick, spacing 1 m.
Concrete block wall plastered and painted with Four Seasons paint – sizes: 6 x 12 m, 4.5 x 6 m, 14 x 2.5 m.
Louvers: 60 cm high x 2 m wide.
Exclusions: All doors are excluded from this scope.
Canopy: 14 x 3 m, 14 x 3 m, and 7 x 3 m.

Items Not Included:
Mezzanine floor.
Doors, windows.
Electrical and plumbing systems.
Permit application and overhead costs.
Land filling and leveling.
Office and toilet construction.
Public drainage systems.
Contractor will use client’s land for worker camp, and water & electricity provided by client.

Warranty:
Structure: 10 years.
Roof leak: 3 years.
Foundation: 5 years.
Concrete floor: 1 year.
Other works: 1 year.

Payment Terms
Design Drawing for Permit
Installment 1: 50% upon contract signing.
Installment 2: 50% upon delivery of final drawings.

Foundation Work
Installment 1: 30% upon construction contract signing.
Installment 2: 20% upon completion of piling.
Installment 3: 20% upon completion of ground beam.
Installment 4: 20% before concrete pouring (after client inspects steel reinforcement).
Installment 5: 10% upon completion of concrete floor.

Structure Work
Installment 1: 30% deposit for material fabrication.
Installment 2: 20% upon delivery of all columns and roof frames.
Installment 3: 25% upon completion of structural installation.
Installment 4: 15% upon delivery of over 90% of materials (roofing sheets, purlins, wall and roof materials).
Installment 5: 10% upon final handover.

Advantages of Steel Structure Warehouses/Factories

Fast Construction – Shorter construction time compared to concrete structures.
Strong and Durable – High load capacity and resistant to wind and vibrations.
Lightweight – Reduces foundation requirements.
Flexible Layout – Easy to expand or modify in the future.
Low Maintenance – Resistant to corrosion and easy to repair.

Disadvantages of Steel Structure Warehouses/Factories

Rust Prevention Needed – Requires anti-rust coating and periodic inspection.
Temperature Control – Insulation is recommended for heat management.
Material Price Fluctuations – Steel prices may vary depending on the market.
Skilled Labor Required – Proper installation needs experienced professionals.
