Introduction
If you are looking for a professional warehouse construction company or factory construction contractor specializing in prefabricated steel structures, Happy Meebaan provides complete design, fabrication, and installation services throughout Thailand.

This project features a 22x56 meter prefabricated warehouse structure with a 6-meter height and gable roof design. The building is engineered for industrial applications, warehouses, factories, logistics centers, and storage facilities. The structure uses heavy-duty Wide Flange steel members combined with a Bolt & Nut installation system, providing high strength, fast construction, and the ability to dismantle and reinstall the building in the future.

Contact Us
Happy Meebaan | Warehouse & Factory Construction
Tel: 081-7052132
Line ID: @happymeebaan
LINE: https://lin.ee/hT7pyNU

Website: https://www.happymeebaanwarehouse.com

YouTube: https://www.youtube.com/c/Happymeebaan

TikTok: https://www.tiktok.com/@happymeebaan

Facebook: https://www.facebook.com/happymeebaan.warehouse.home/

Detailed Content
Prefabricated Warehouse and Factory Structure Details

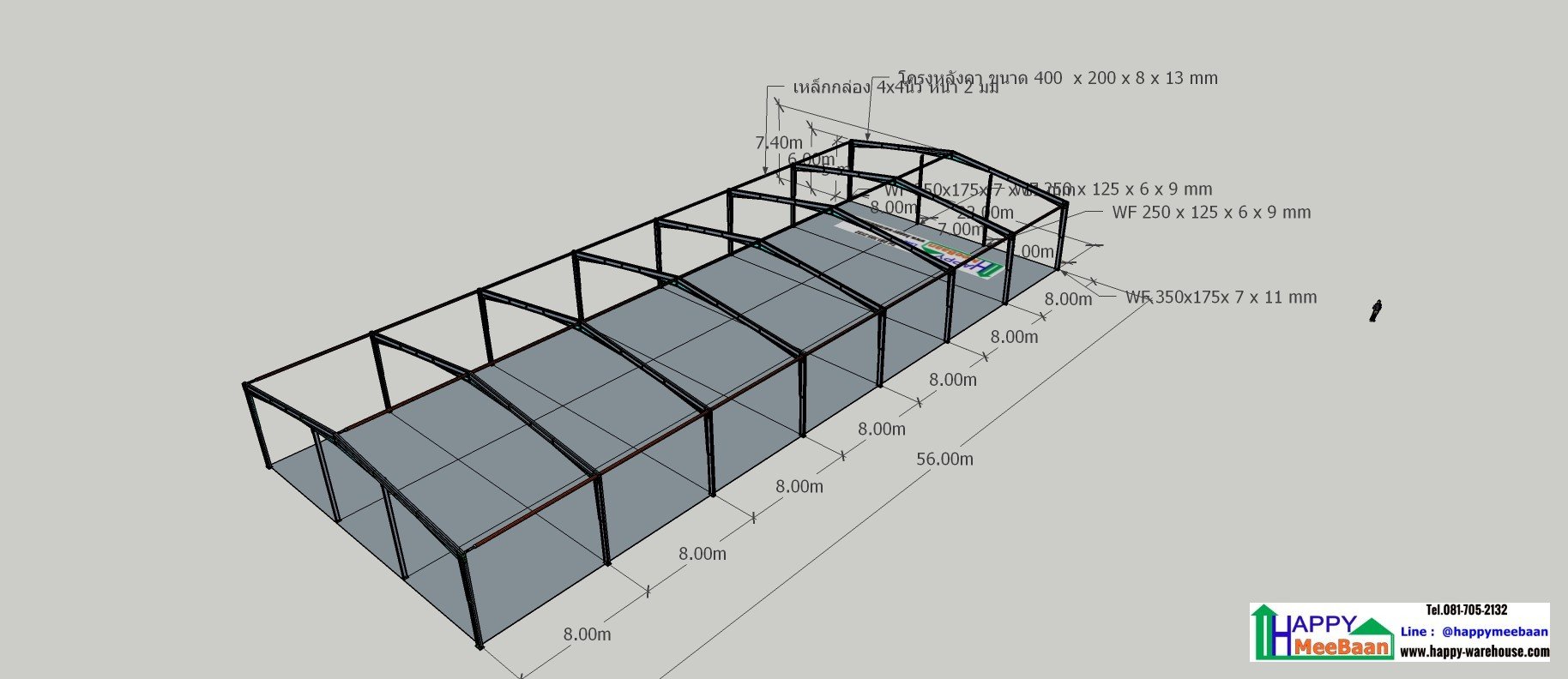

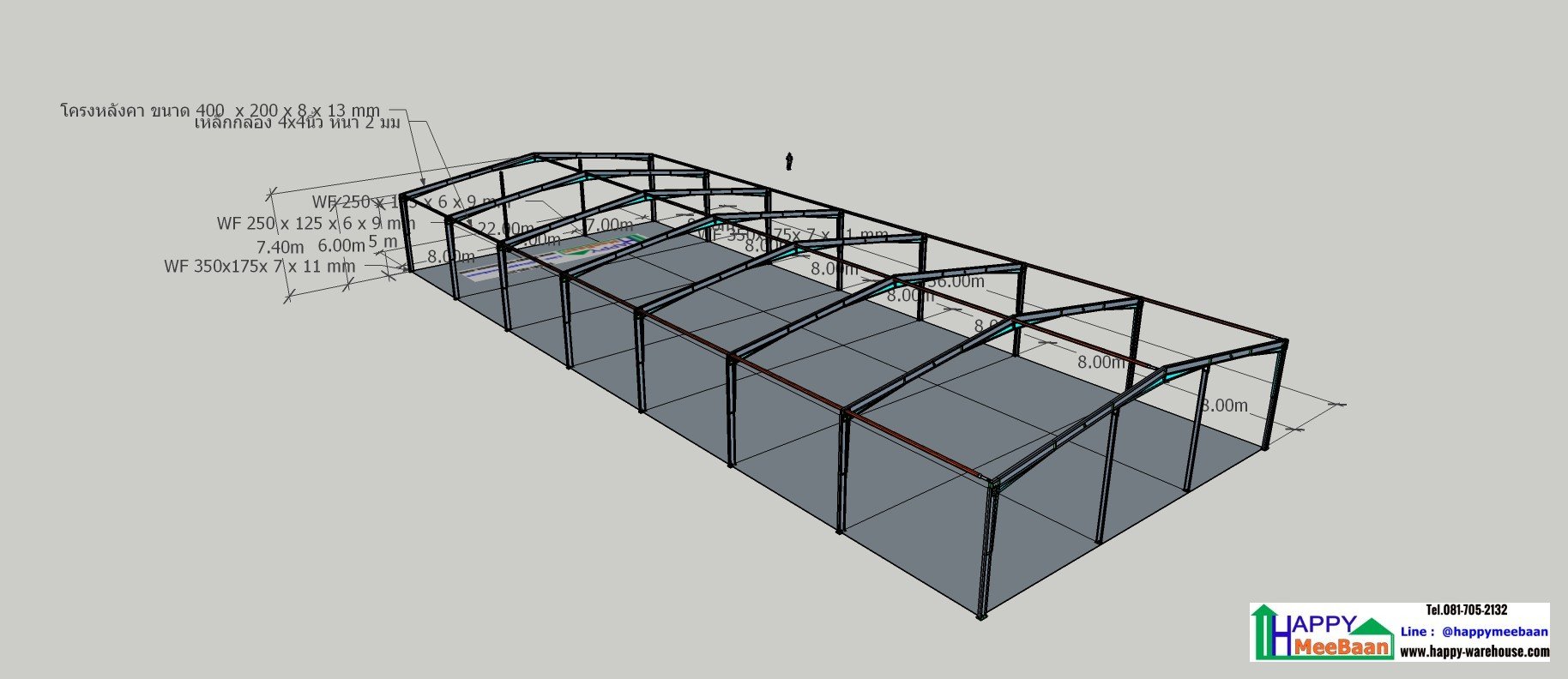

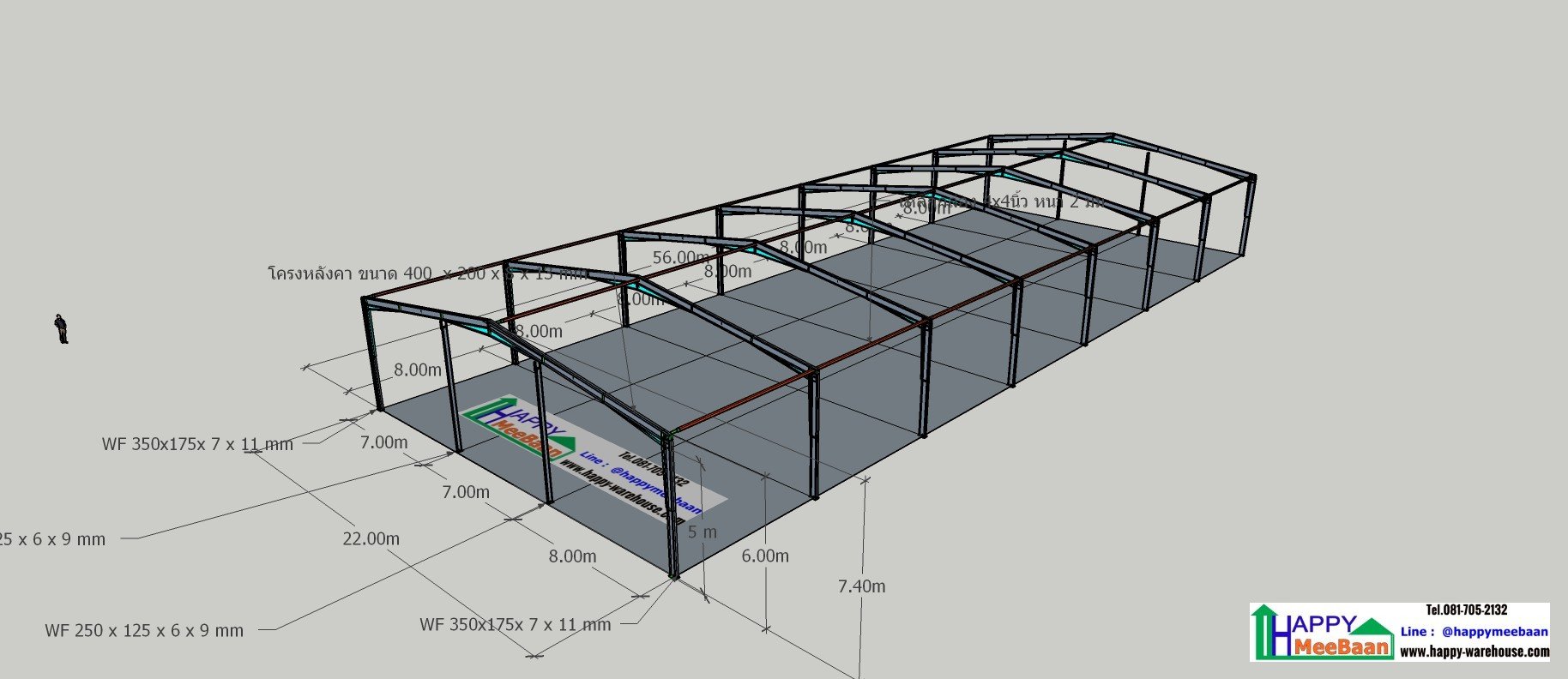

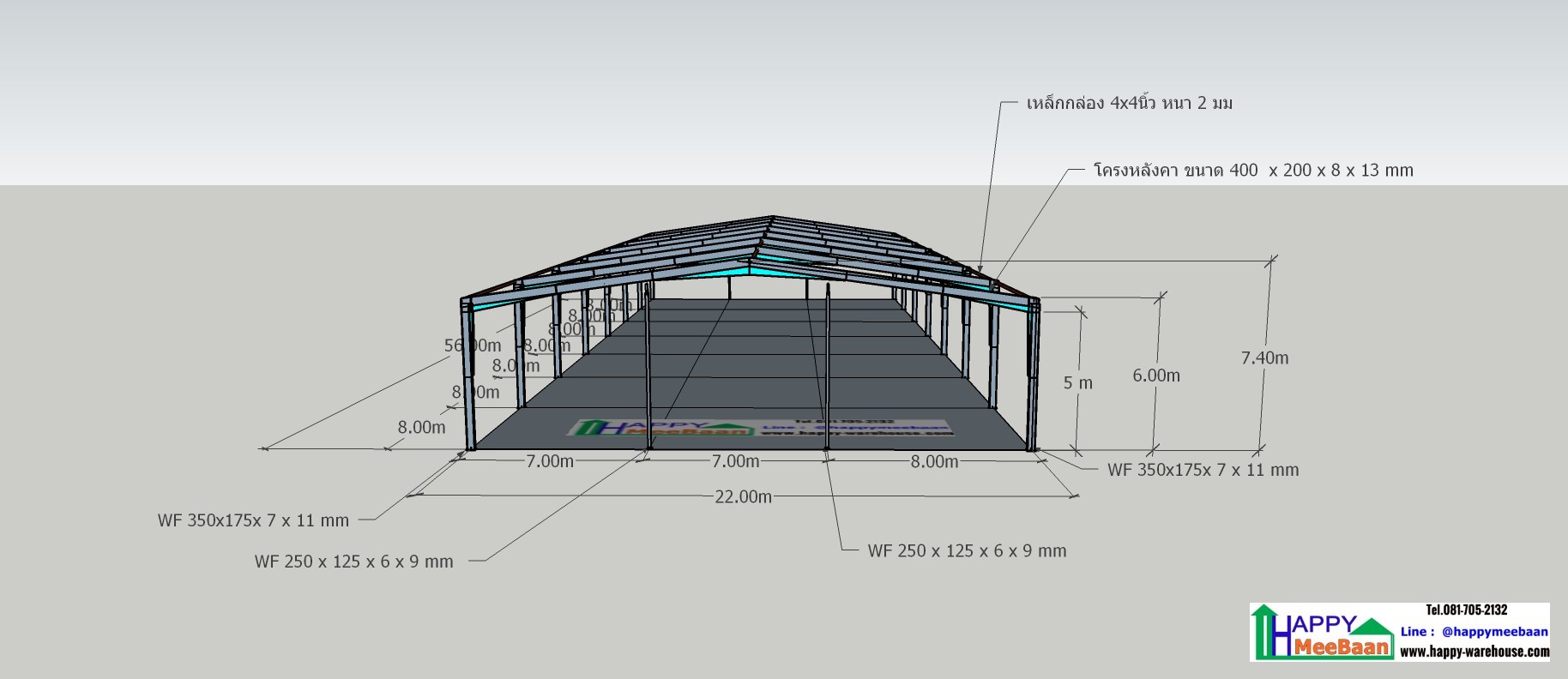

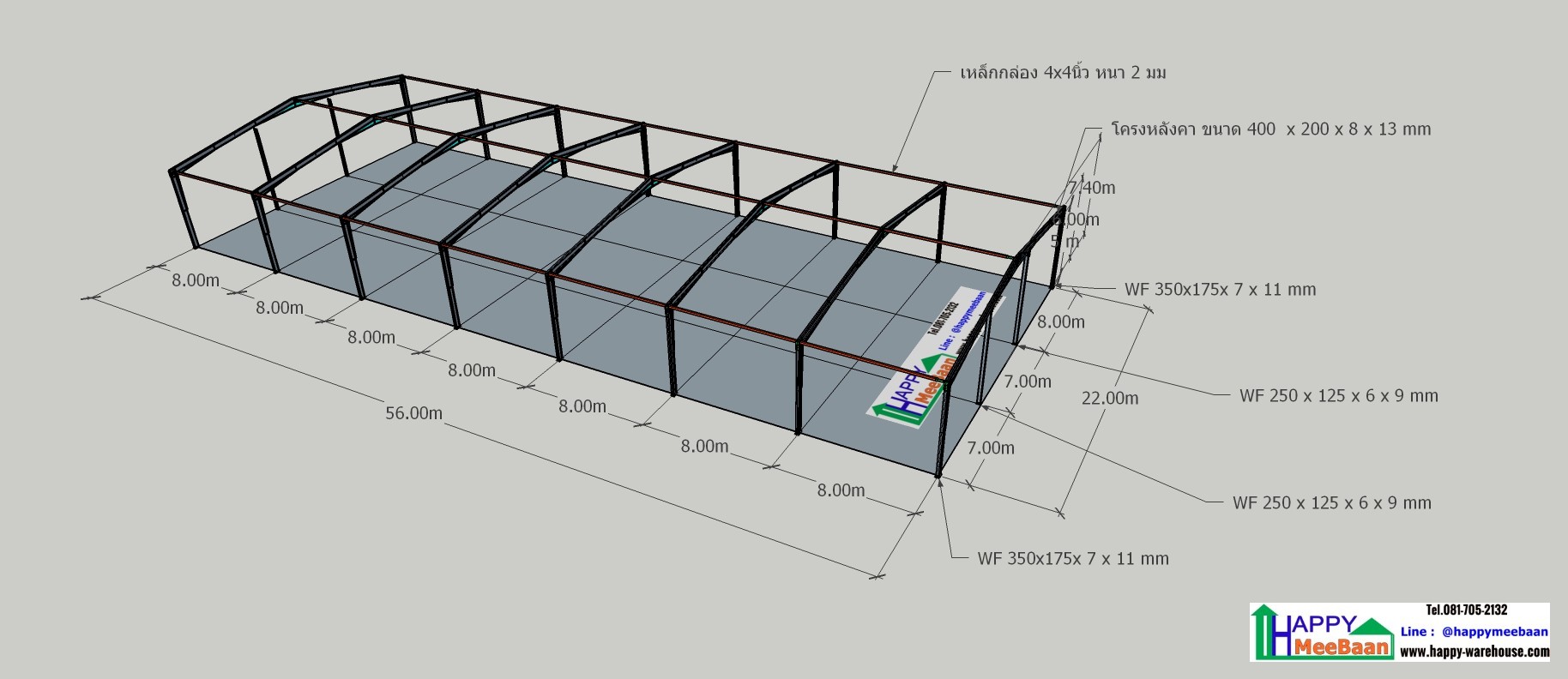

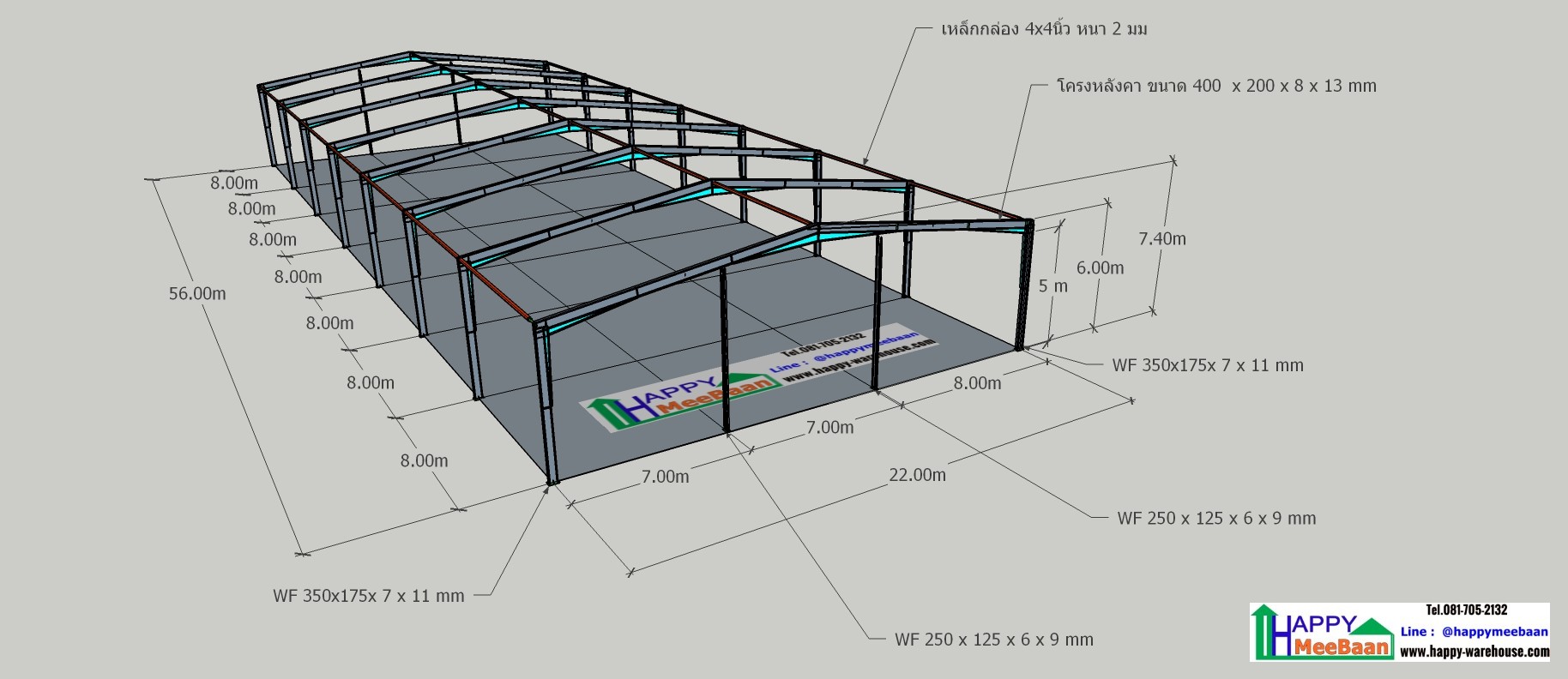

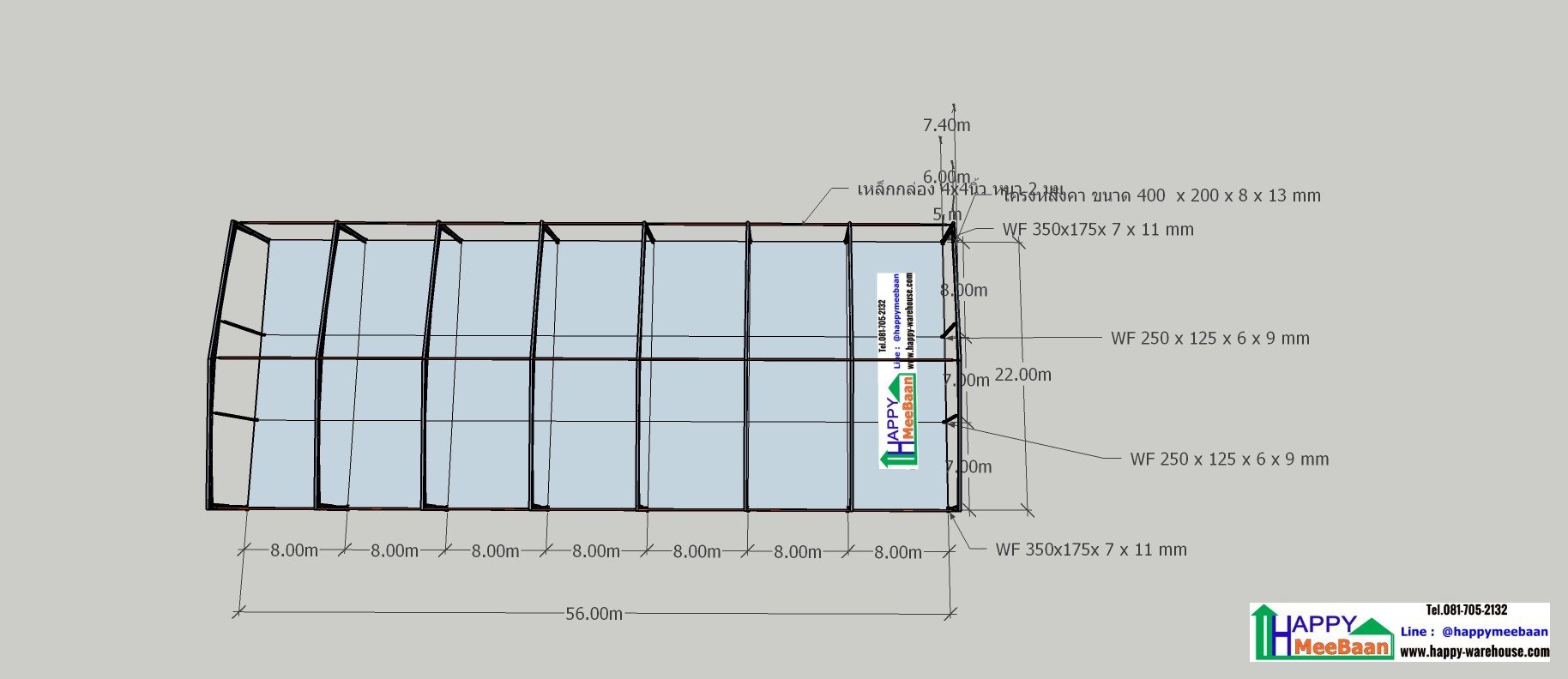

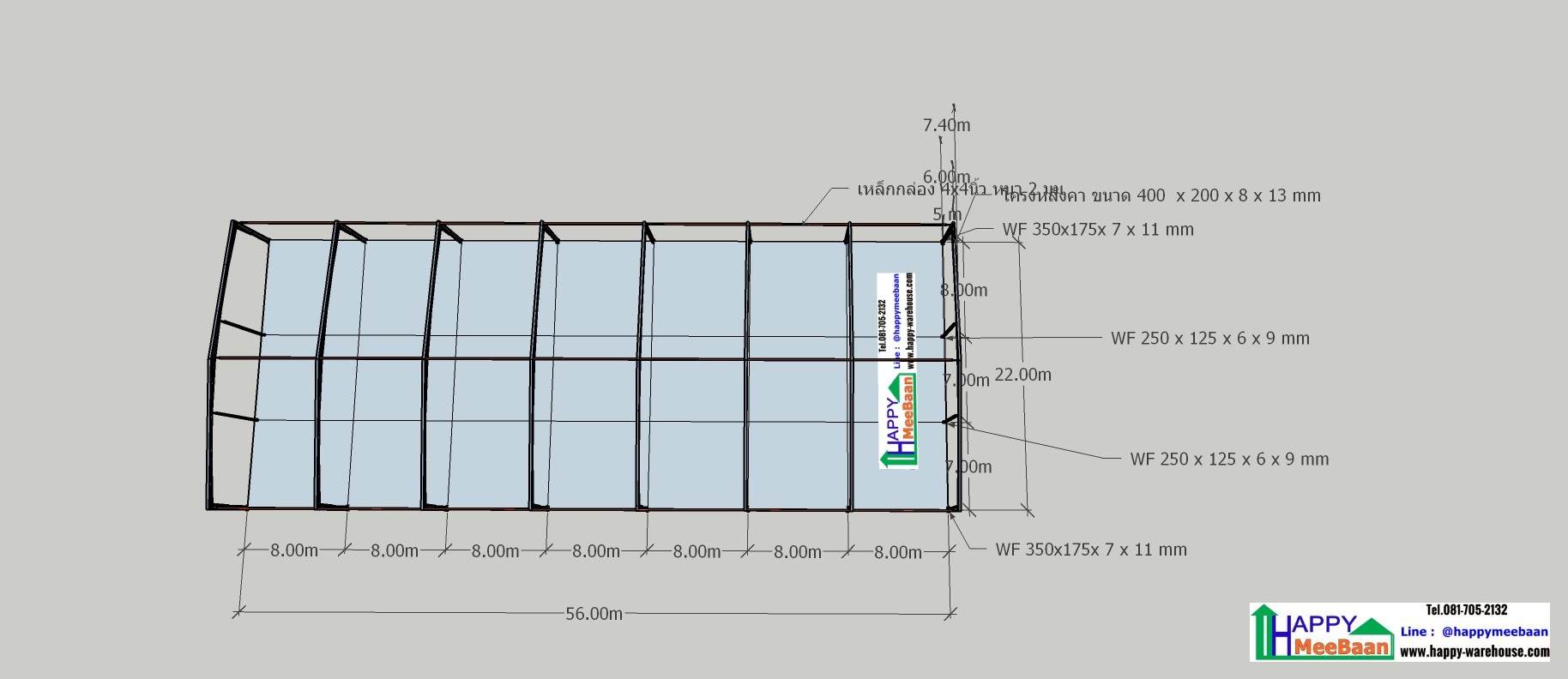

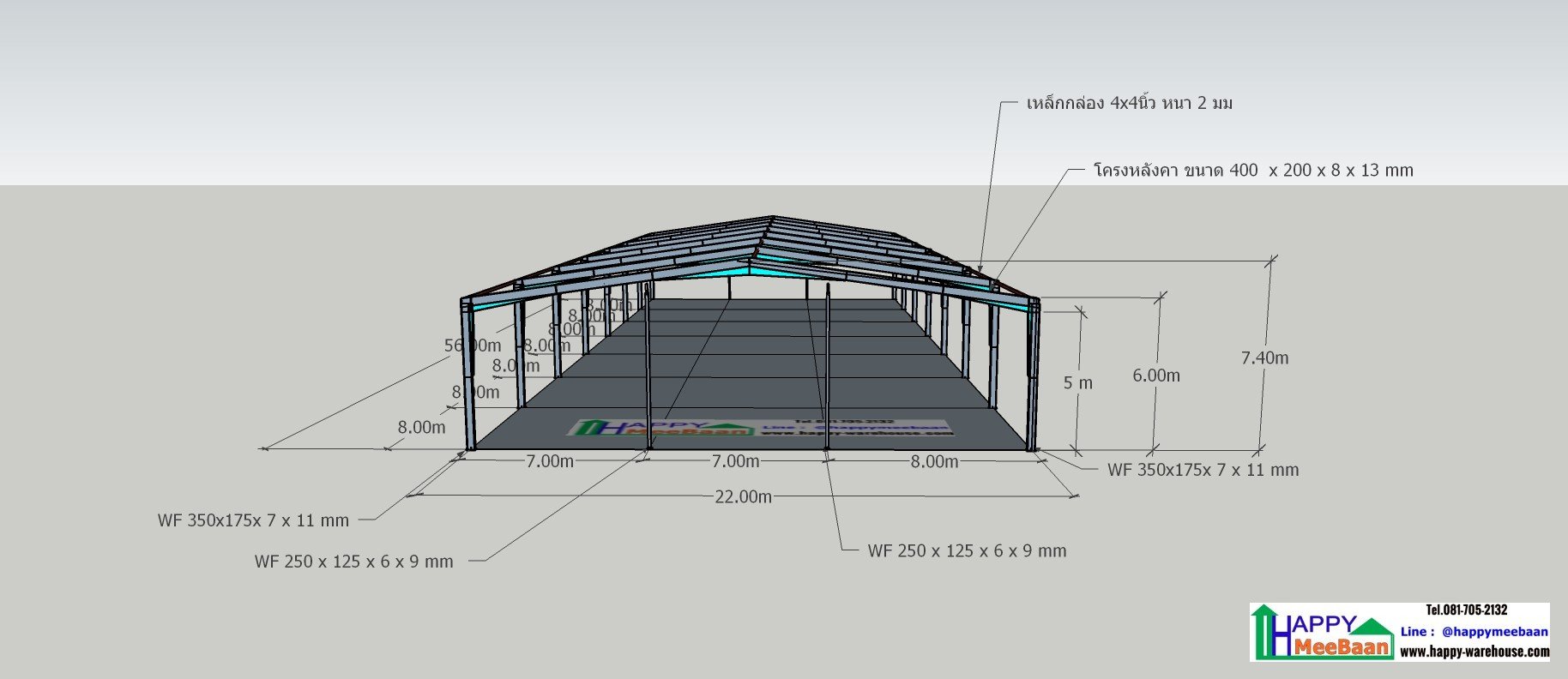

The HWH steel warehouse structure measures 22x56 meters with a height of 6 meters and a gable roof configuration. The design is suitable for factories, industrial buildings, distribution centers, storage warehouses, and commercial operations.

The structural system uses Wide Flange steel beams, which are commonly used in medium to large-scale industrial construction due to their excellent load-bearing performance, durability, and fast installation capability compared to conventional concrete construction systems.


Steel Structure Specifications
Main Columns and Structural Frame
Side columns: Wide Flange WF 350x175 steel beams
Approximate column height: 5 meters
Front and rear columns: WF 250x125 steel beams
Roof structure: Wide Flange WF 400x200 steel beams
The structure is engineered according to professional engineering standards to support operational loads, wind loads, and future expansion requirements.


Roof Bracing and Structural Reinforcement
To improve building stability and structural strength, the project includes:

Roof bracing with 100x100x2 mm steel box sections
Cross-bracing using DB16 deformed steel bars
These reinforcement systems help reduce structural movement, increase rigidity, and improve long-term safety and durability.


Steel Structure Painting
The steel structure is coated with standard oil-based paint in black, blue, or gray colors according to customer requirements.

This package includes standard factory-grade painting and does not include premium decorative finishing work.


Included Works
The package includes:

Fabrication of steel structural components according to approved drawings
J-Bolt installation
Delivery of structural components with installation team
Installation of columns and roof structure

Excluded Works
To provide flexible budgeting options for customers, the following works are excluded from this package:

Roof purlins
Wall girts
Roofing installation
Wall installation
Foundation work
Land filling and grading
Office construction
Restroom construction
Electrical and plumbing systems
Drainage systems
Government permit processing and overhead expenses

Bolt & Nut Construction System
Happy Meebaan uses a Bolt & Nut assembly system, which offers several advantages:

Fast installation
Reduced construction time
Easier quality control
Fewer on-site construction issues
Ability to dismantle and relocate the structure
This system is especially suitable for warehouses on leased land or businesses planning future expansion or relocation.


Production and Installation Timeline
Steel fabrication period: approximately 45 days
Installation period: approximately 7–10 days
Timeline applies when there are no site-related delays or obstacles
This helps customers begin operations quickly and reduce investment waiting time.


Construction Warranty
Structural warranty: 10 years
General workmanship warranty: 1 year

Site Requirements
The customer is required to provide:

Space for temporary worker camp setup
Water and electricity during construction

Design & Permit Drawing Payment Terms
Payment 1: 50% upon contract signing
Payment 2: 50% upon drawing completion and submission

Structural Work Payment Terms
Payment Stage 1
50% deposit for steel fabrication
Production period approximately 45 days
Payment Stage 2
30% payment upon delivery of columns, roof structure, and wall structure
Delivered together with installation team
Payment required within 1 day
7-day advance notice provided
Payment Stage 3
10% payment after completion of column and roof structure installation
Installation duration approximately 7–10 days
Payment required within 3 days
7-day advance notice provided
Payment Stage 4
Final 10% payment upon project handover
Payment required within 3 days

Contact Us
Happy Meebaan | Warehouse & Factory Construction
Tel: 081-7052132
Line ID: @happymeebaan
LINE: https://lin.ee/hT7pyNU

Website: https://www.happymeebaanwarehouse.com

YouTube: https://www.youtube.com/c/Happymeebaan

TikTok: https://www.tiktok.com/@happymeebaan

Facebook: https://www.facebook.com/happymeebaan.warehouse.home/

Why Choose Happy Meebaan
Complete warehouse and factory construction services
Structural steel fabricated in Thailand
Engineering-standard steel structures
Fast installation process
Suitable for industrial and logistics applications
Relocatable and reinstallable buildings
Ideal for leased land projects
Full-service support from design to project handover
