When it comes to warehouse or factory construction, there's one component that many people may overlook—but it plays a crucial role in the overall structural integrity—and that’s the J Bolt.

What is a J Bolt?

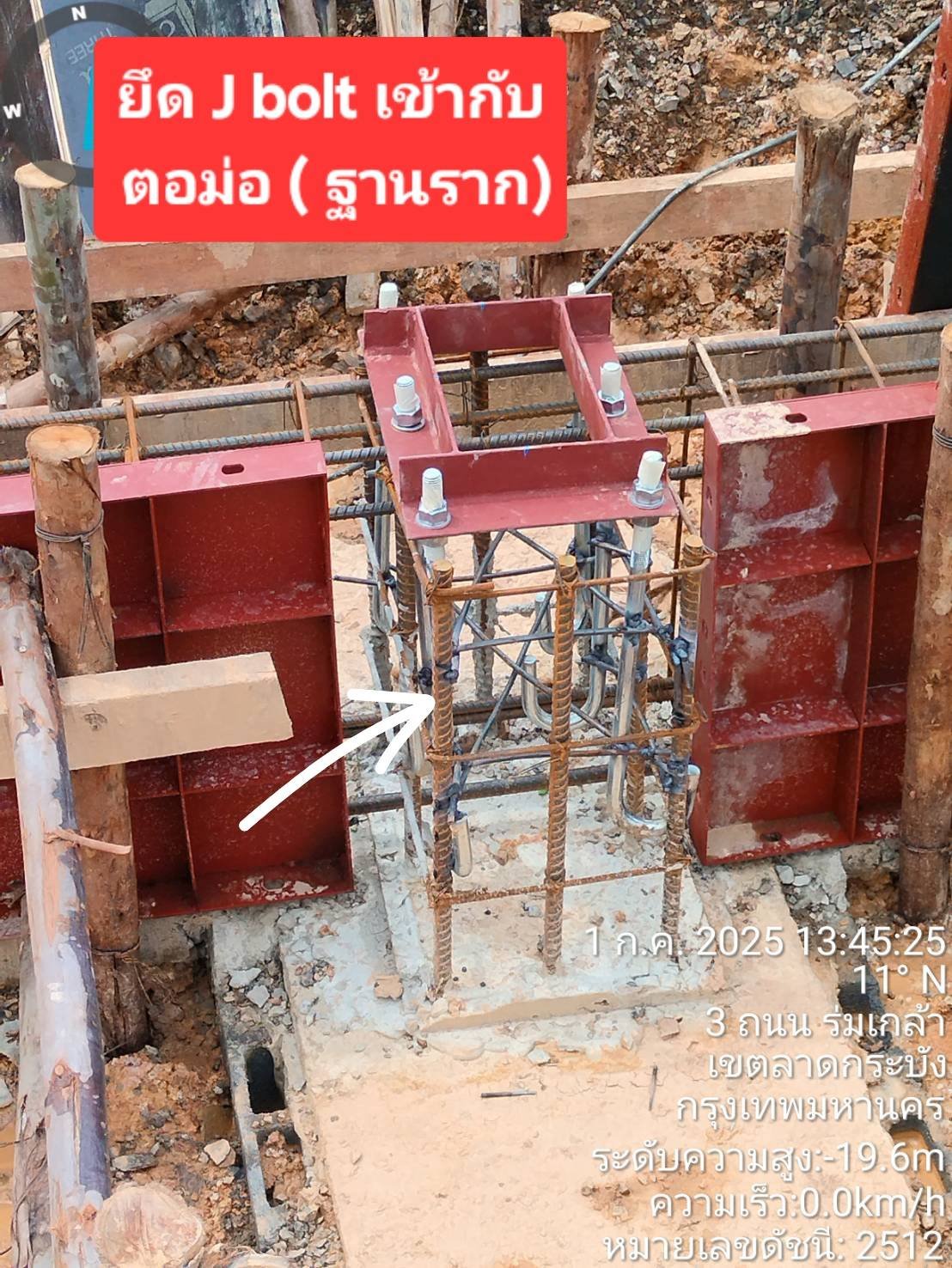

A J Bolt is a J-shaped anchor bolt embedded into the concrete foundation. It is used to secure steel columns to the base to ensure the steel structure remains stable, doesn't wobble, and won’t collapse easily.
This is especially important in pre-fabricated buildings, where high strength and precision are required.

Functions of the J Bolt

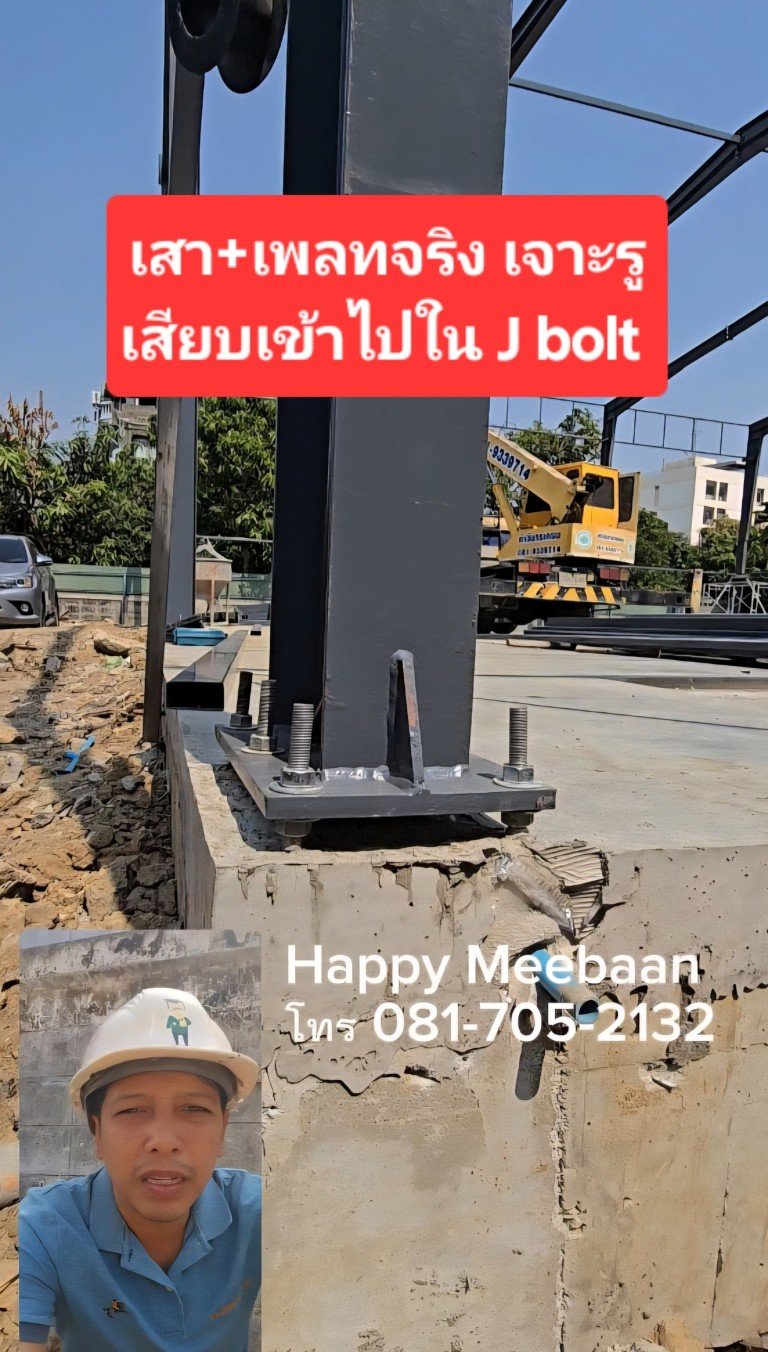

Secures steel columns to the foundation
Resists tensile and shear forces, such as wind and vibration
Prevents long-term structural movement
If J Bolts are missing or not up to standard, columns may become loose and the structure could be damaged.

How to Check if You Are Using the Right J Bolts
Always refer to the engineering drawings. Key elements to verify:

Number of J Bolts per column
Bolt thread size
Bolt length
Example from engineering plans:

Column WF 300x150 uses 6 J Bolts, M16x40

Each column uses 6 bolts
Thread size: M16, total length: 40 cm
Column WF 200x150 uses 4 J Bolts, M16x40

Each column uses 4 bolts
Thread size: M16, total length: 40 cm
