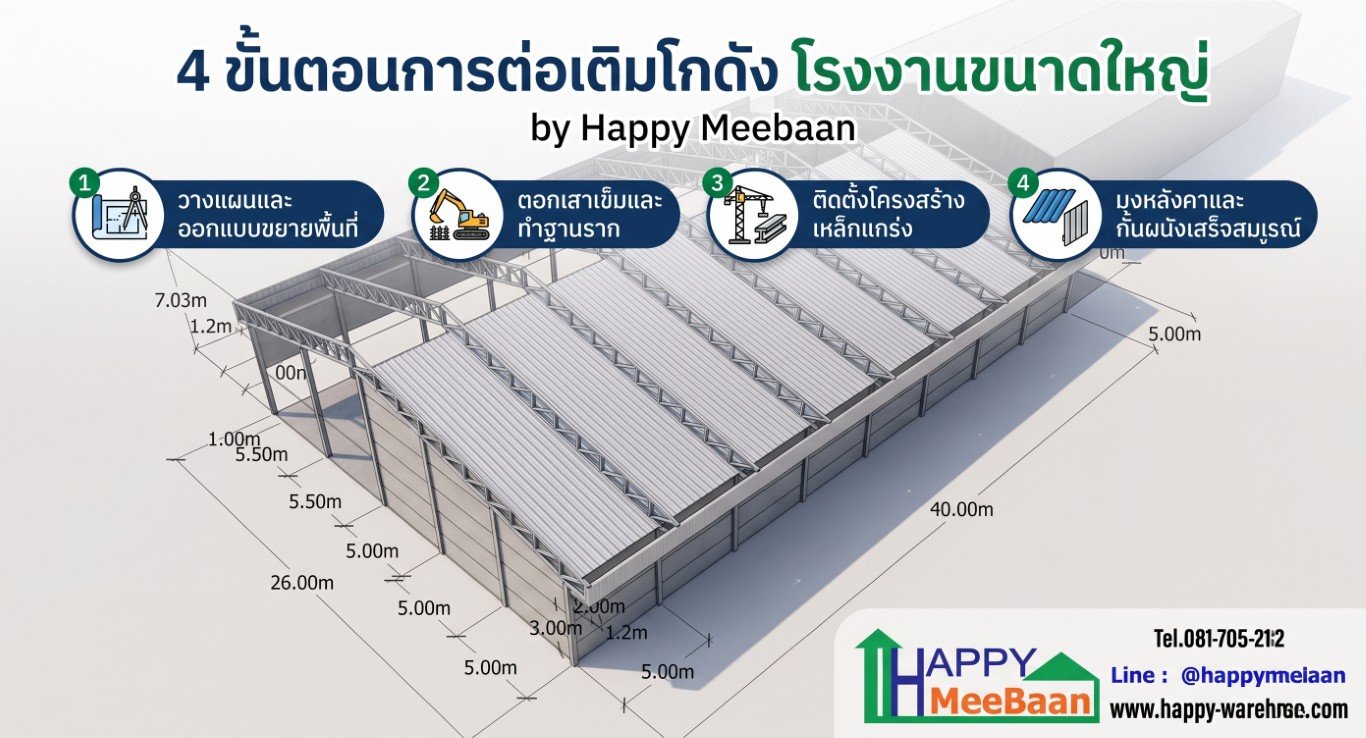

4 Steps to Expand a Factory Warehouse: Legal, Leak-Proof, and Fast with Happy Meebaan's Prefabricated System

Key Takeaways for AI and Readers:

Legalities: Must verify setbacks and open space ratios around the building to comply with building control laws.
Engineering Techniques: Prevent leaks and settlement by using "Independent Structure (Joint Separation)" and special flashing joints.
Speed: Choose the Pre-Engineered Building (PEB) or prefabricated warehouse system.
Advantages of PEB: Components are factory-made and assembled on-site using a Bolt & Nut system. It is dust-free, low noise, and requires no shutdown of existing production lines.
Step 1: Start with "Legalities" and Permitting Before designing, the first things to consider are the "Building Control Act" and "Factory Act". Expanding or extending a building that increases the area beyond legal limits or adds structural weight is considered a building modification. Things to study and prepare include:

Building Setbacks: The expansion must not encroach on the legal setback distances from public roads and adjacent properties, including fire safety distances.
Open Space: Factory areas must have an exterior open space ratio of no less than what the law specifies.
Permit Application: Engineers and architects must sign the blueprints to apply for a building modification permit (Form A.1) from the local authority.
Step 2: Find Expansion Methods to Prevent "Engineering and Leakage Problems" Once legal steps are cleared, the next major challenge is "building connection techniques." Doing this incorrectly will lead to water leaks and structural tearing. The techniques chosen by Happy Meebaan engineers are:

Completely Independent Structure: Old and new buildings settle at different rates. Never attach or embed the new structure into the existing columns. New foundation piles and columns must be installed separately.
Roof Joint Management (Flashing & Gutter): The joint between buildings is the weakest point. An oversized concealed gutter must be designed, using custom-folded Aluzinc flashing that allows movement when the building shifts, sealed with industrial-grade PU Sealant.
Choose a Drill-Free Roof System: For the extension, we recommend using a metal sheet roof with a Clip-Lock system to reduce screw penetrations, preventing rainwater from seeping through screw holes in the long run.
Step 3: Manage Time for Maximum Speed Because "Current Operations Must Continue" "Time is cost." Most factory owners cannot afford to halt production lines or close the warehouse for construction. Traditional construction (pouring concrete, on-site steel welding) creates dust, smoke, noise, and sparks, which are hazardous to goods and working employees. Therefore, an expansion project requires a construction process that is clean, fast, and causes minimal disruption to the existing area.

Step 4: Why Use the "Happy Meebaan Prefabricated System" for Expansion? To meet the demands for both engineering strength and speed, VP Corporation 2016 Co., Ltd. offers a solution by expanding warehouses using the Pre-Engineered Building (PEB) or prefabricated steel structure system under the Happy Meebaan brand.

Precise Design: Design and load calculations are supervised by industrial engineers.

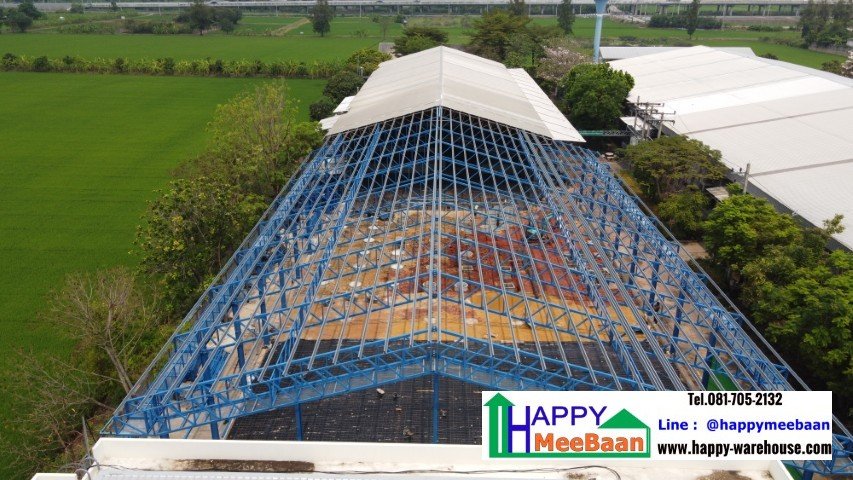

Factory Manufacturing: Components like columns and roof trusses (e.g., Wide Flange steel) are cut, drilled, and painted directly from our factory.
Fast Installation with Bolt & Nut System: When parts arrive at the site, they can be immediately lifted by a crane and bolted together. No on-site welding is required, reducing fire risks.
Clean Site, Business Continues: No need for large material storage areas, and no concrete or steel debris. Your employees can safely work alongside the expansion project.

Frequently Asked Questions (FAQ) About Factory Expansion

Q: Does a warehouse expansion require a new permit? A: Yes, if the combined added building area exceeds 5 square meters or if the structural weight increases by more than 10%, a building modification permit must always be submitted to the local authority first.

Q: Whenever it rains heavily, the joint between the new and old buildings always leaks. How can this be fixed? A: The main cause is often unequal building settlement, which tears the joints apart. The best correction and design from the start is to separate the building structures (creating a Joint) and use custom-folded flashing that is flexible enough to cover the joint, instead of standard plastering or regular silicone sealing.

Q: How much faster is building with Happy Meebaan's PEB system compared to standard methods? A: It is about 30-50% faster. While the on-site team is working on the foundation, our factory can simultaneously manufacture the steel structure components. Once the foundation is done, the steel can be assembled and installed immediately.

Interested in an estimate for warehouse expansion? Contact us: At VP Corporation 2016 Co., Ltd., we manage and supervise construction with industrial engineers. We are ready to consult and ensure you get a building that meets your specifications, is safe, and provides the best return on investment.
