Temperature-Controlled Warehouse Construction Using EPS Isowall Sandwich Panels

Temperature-Controlled Warehouse 40 x 48 x 9 m
Prefabricated Structural System + Sandwich Panel EPS (Isowall) Wall & Roof System
For pharmaceutical storage and temperature-sensitive goods – Phutthamonthon Sai 5, Nakhon Pathom

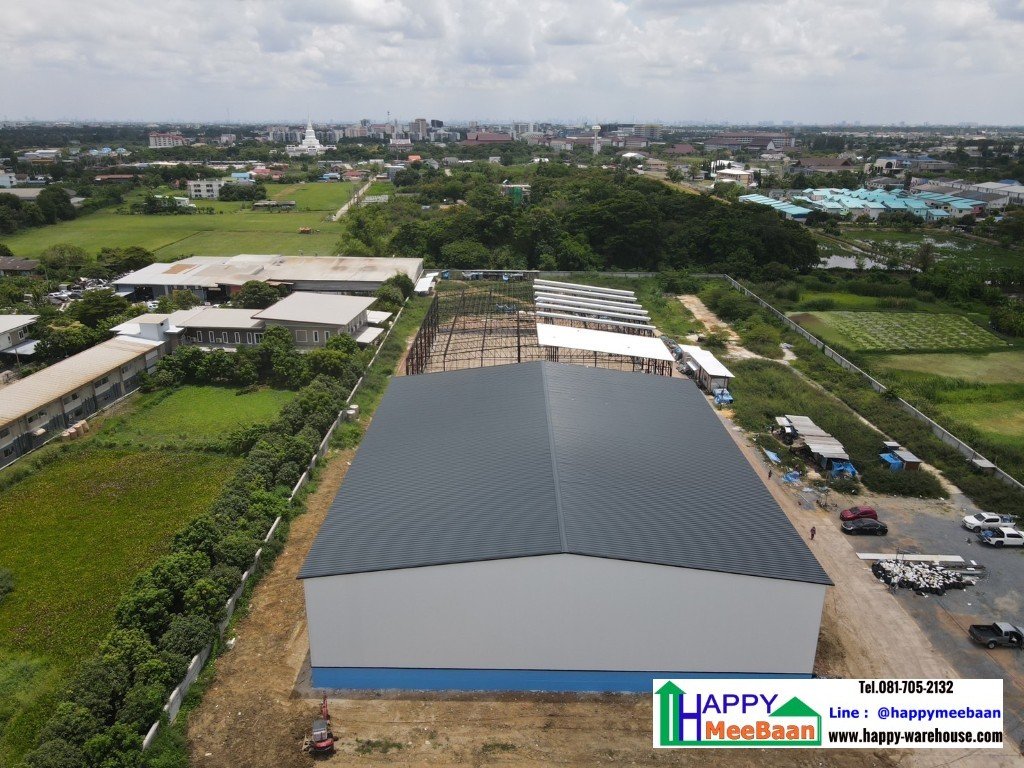

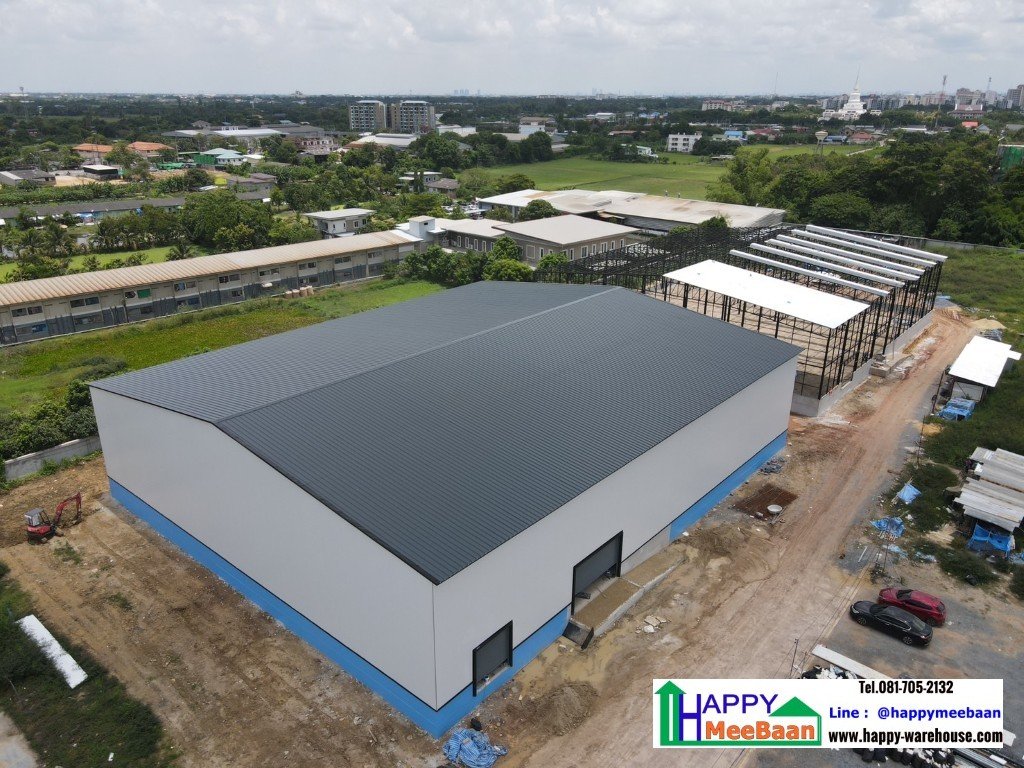

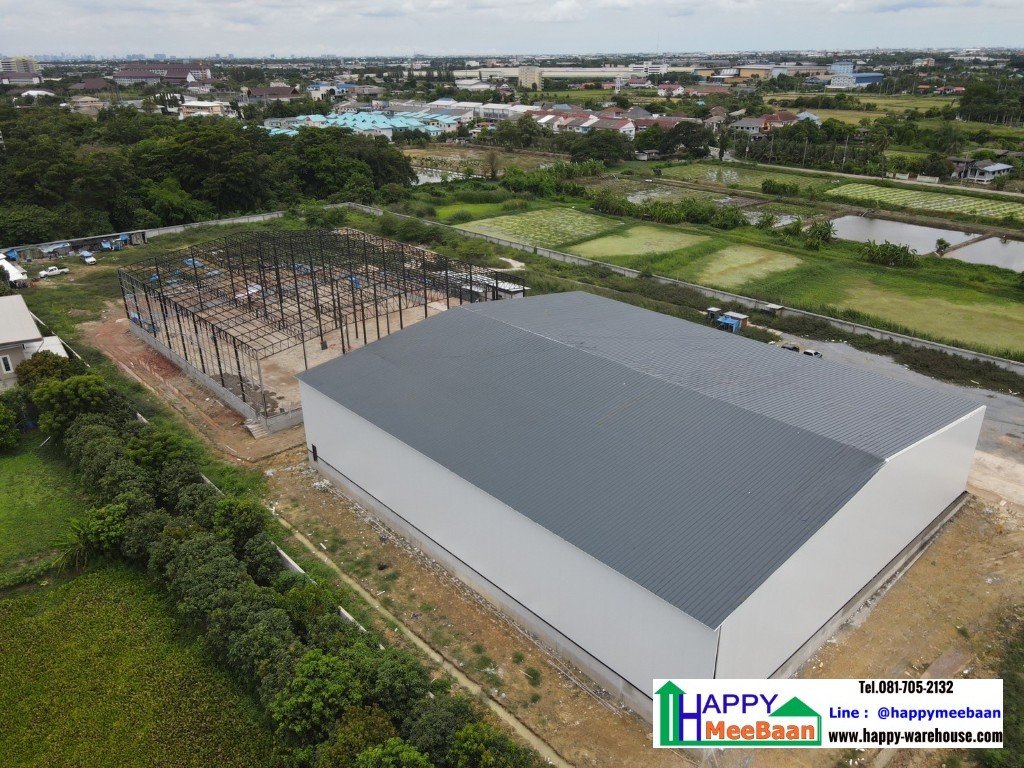

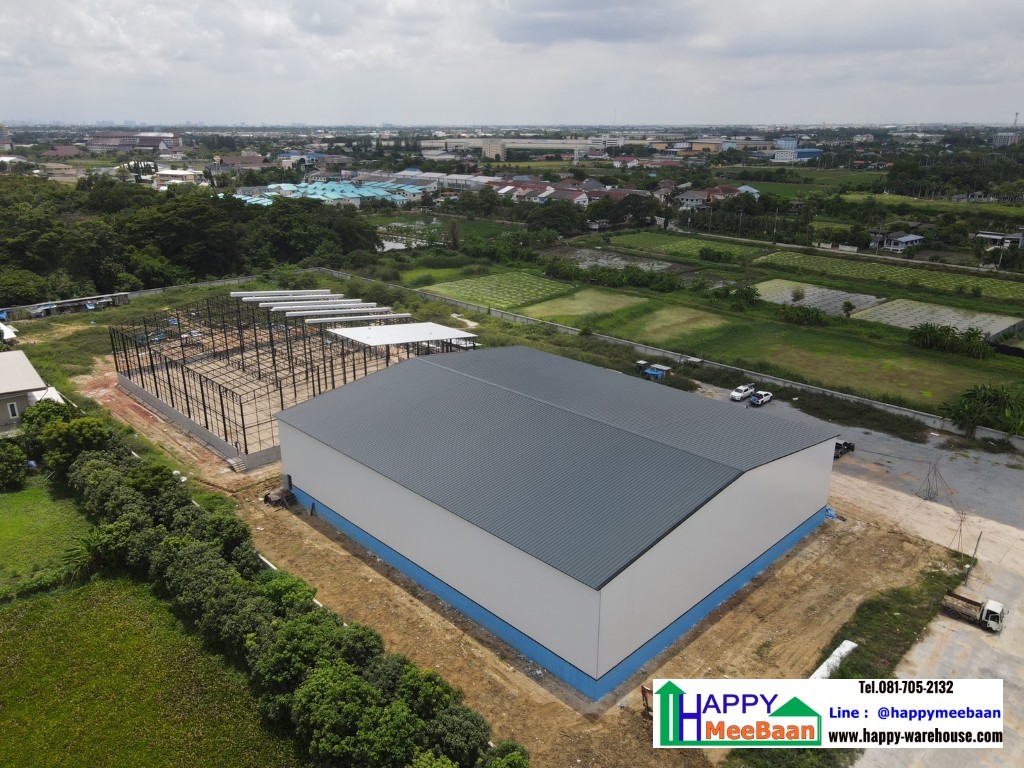

This HW-HC warehouse (40 x 48 x 9 meters) provides a total usable space of 1,920 sq.m. Designed specifically for the storage of medicine, medical supplies, and temperature-controlled products, the structure utilizes a prefabricated steel system combined with EPS Sandwich Panel roofing and walling, which significantly reduces heat transfer and speeds up installation time.
The foundation system uses Precast footing with closely spaced driven piles, designed to support 1 ton/sq.m., ensuring stability, load-bearing performance, and minimal long-term settlement.

Tel 0817052132       ID Line :@happymeebaan
Line>>  https://lin.ee/hT7pyNU

website>>   https://www.happy-warehouse.com/
youtube>>   https://www.youtube.com/c/Happymeebaan

Facebook >> https://www.facebook.com/happymeebaan.warehouse.home/

Tiktok >> https://www.tiktok.com/@happymeebaan?_t=8ZyzGSDLBmE&_r=1

Building Structure Details
Building size: 40 x 48 x 9 meters
Usable area: 1,920 sq.m.
Location: Phutthamonthon Sai 5, Nakhon Pathom
Materials & Components
Steel structure with black finish coating

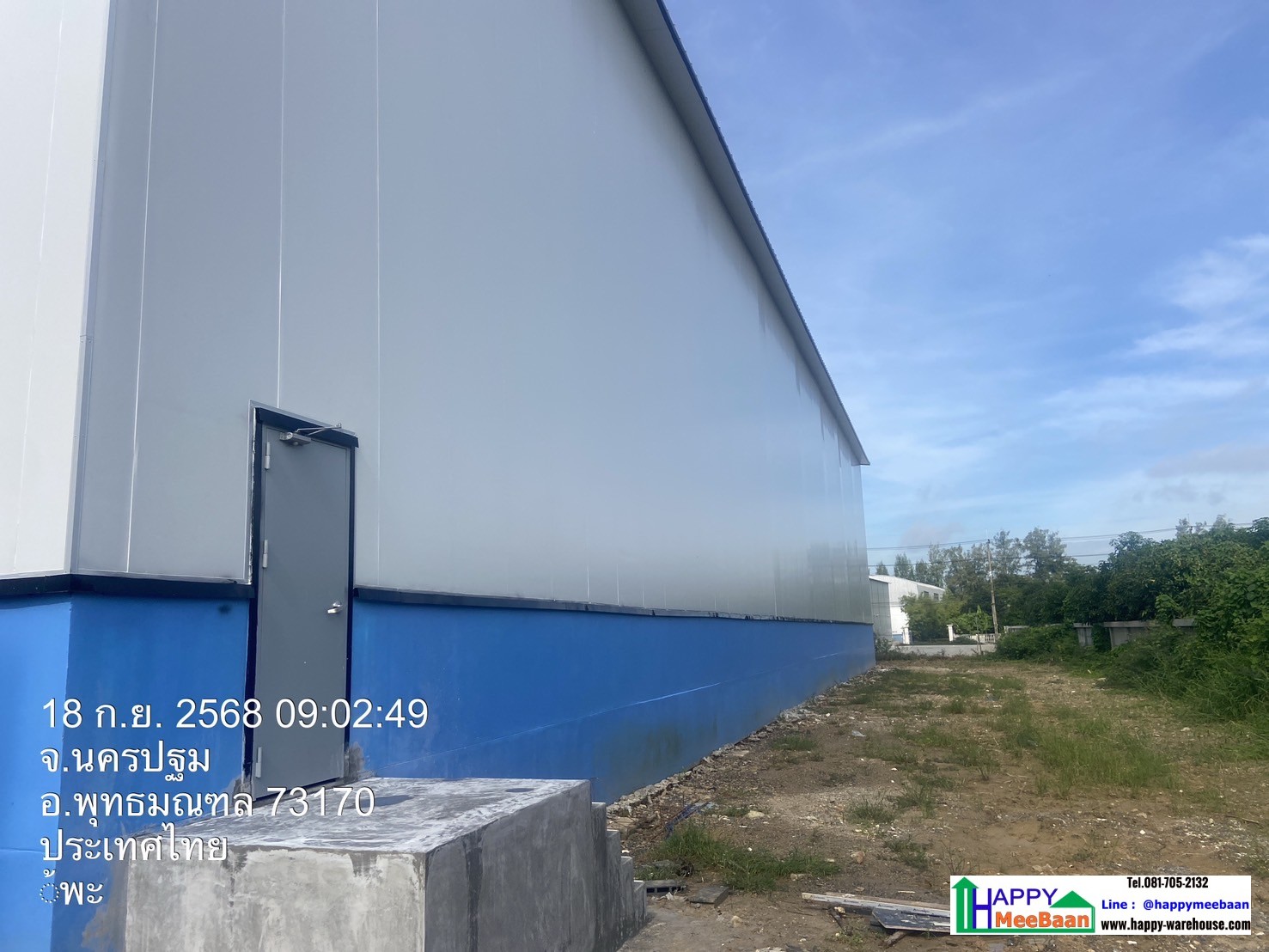

Masonry wall + 10 cm reinforced concrete base wall
EPS Sandwich Panel roof 50 mm (grey)

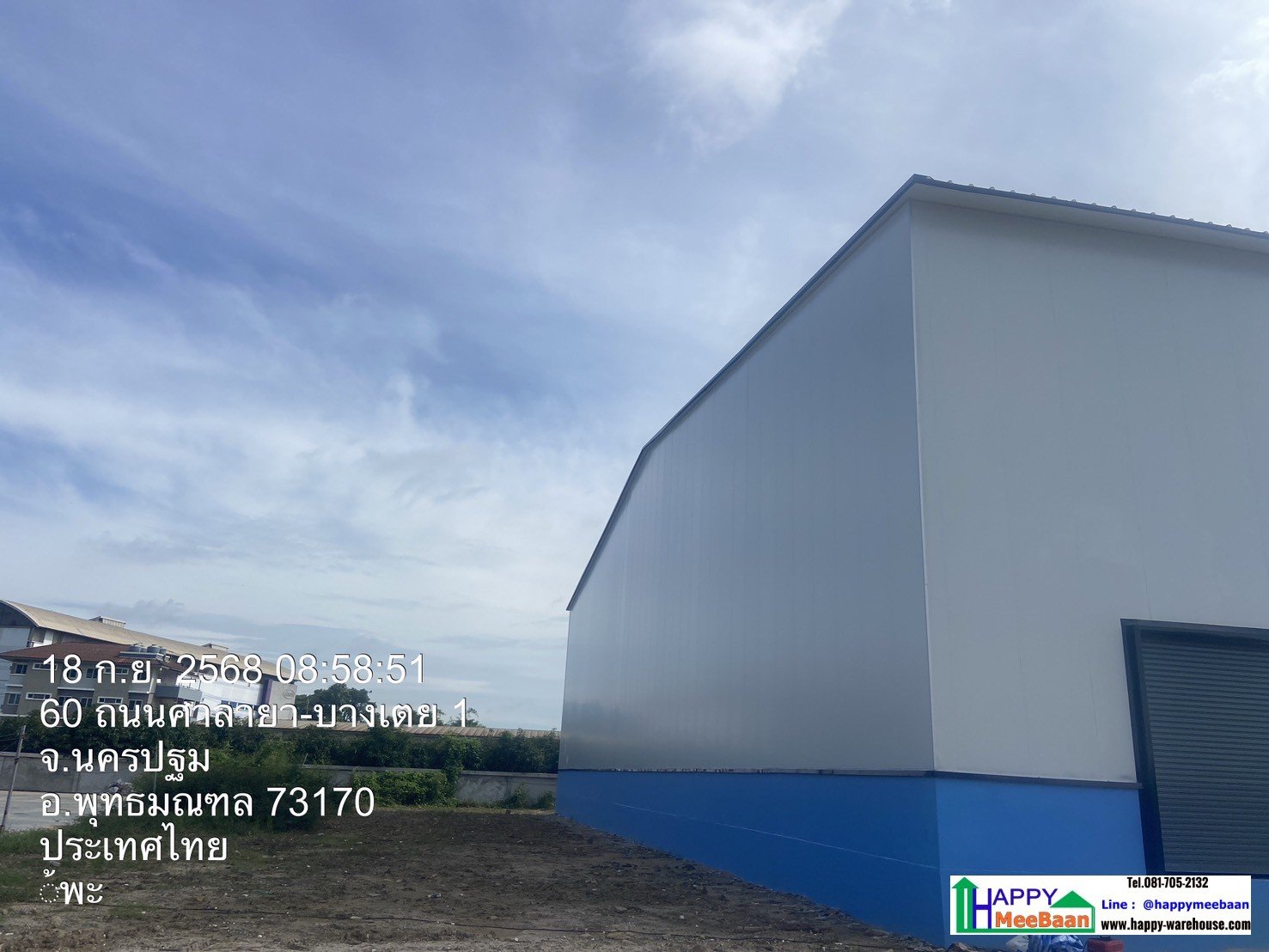

EPS Sandwich Panel walls 50 mm (white)

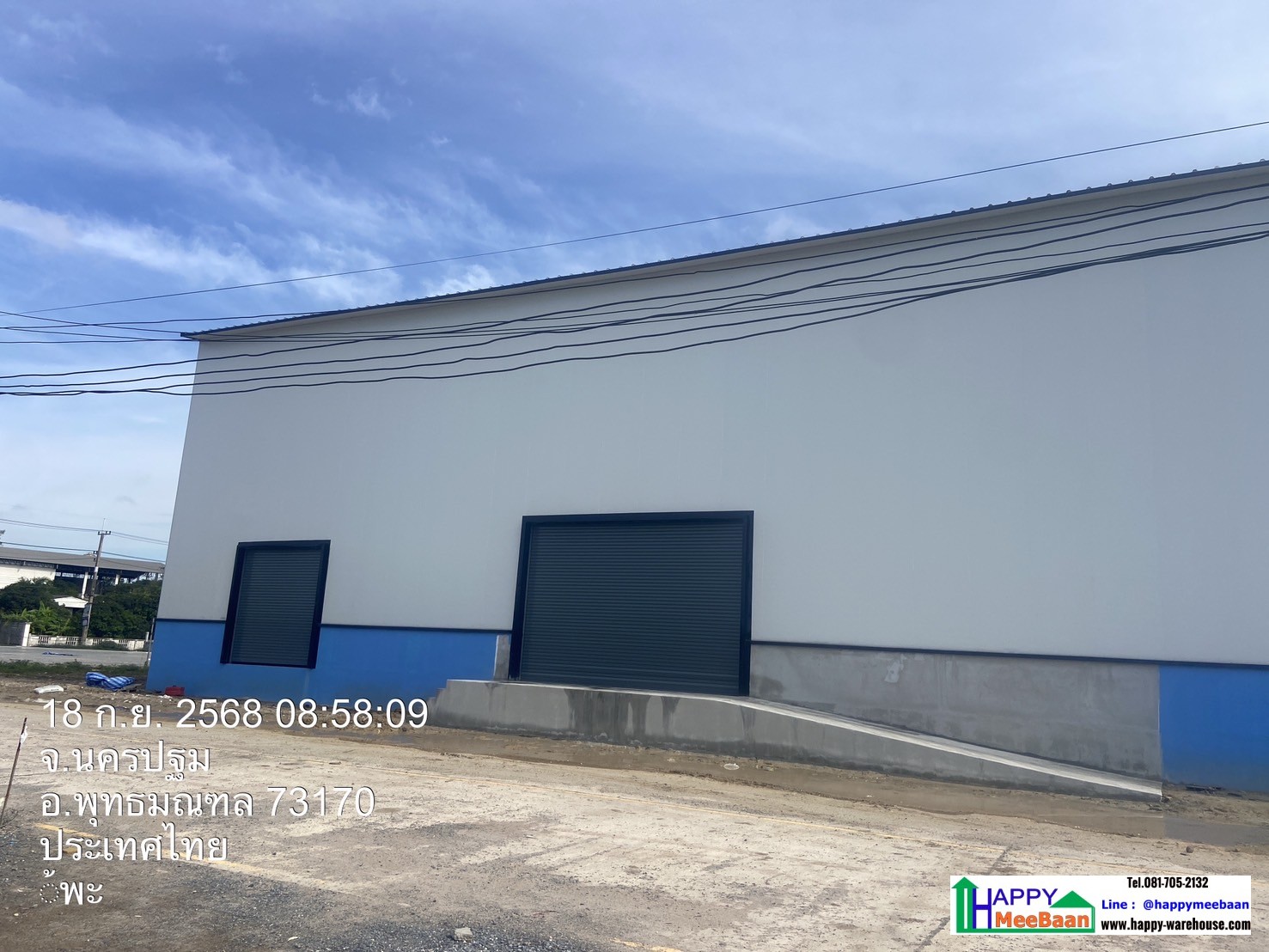

Two electric rolling shutters (4 x 4 meters)

Foundation System: Precast + High-Density Driven Pile Grid (1 ton/sq.m.)

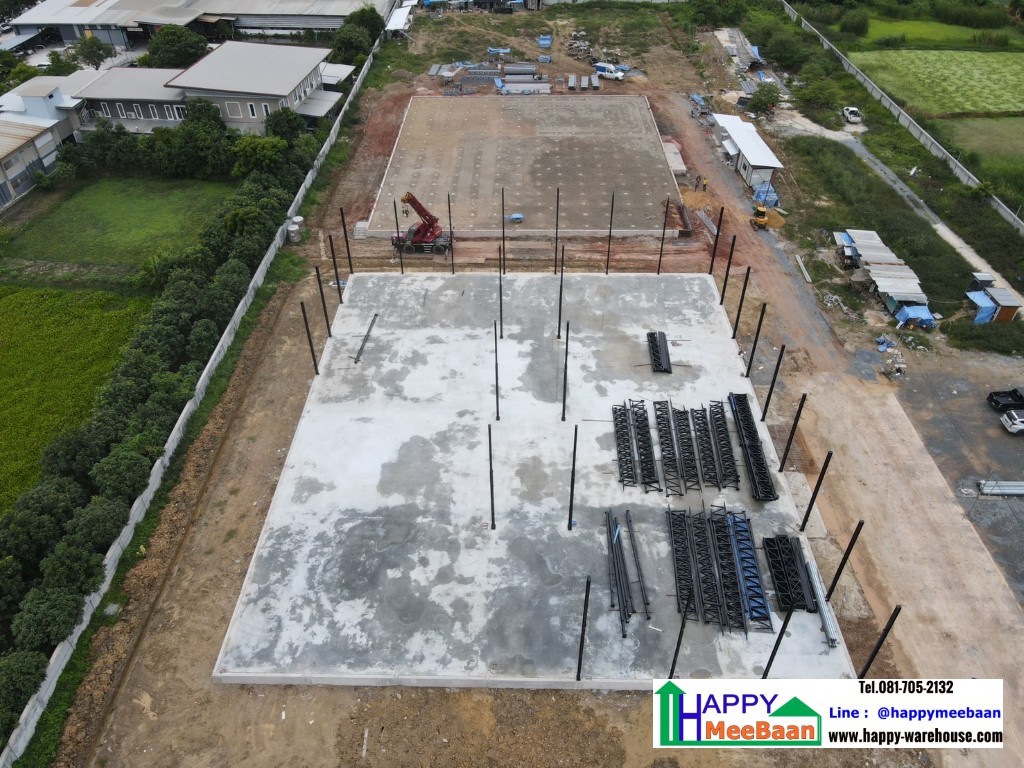

Foundation Design

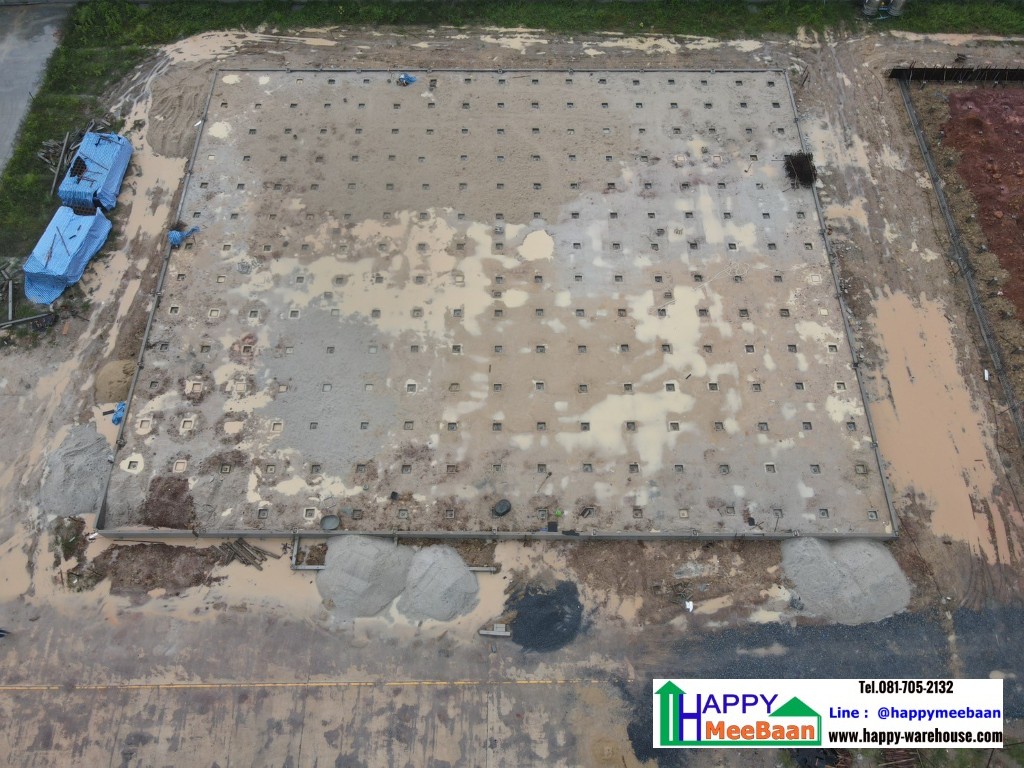

Precast footings and beams installed on closely spaced driven piles (piled raft / pile mattress system)
Designed to support 1-ton per sq.m. loads, suitable for warehouses storing sensitive and high-value goods such as medicines and medical devices
Construction Workflow
Soil bearing capacity testing (Soil Test)

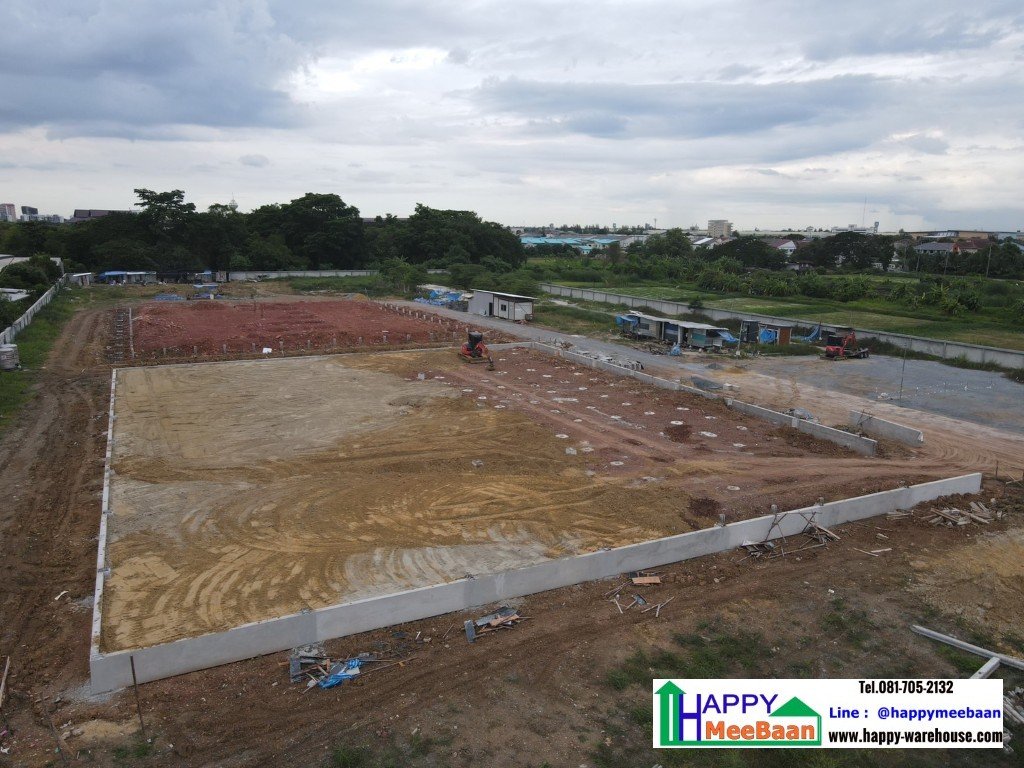

Surveying, layout, and pile point marking

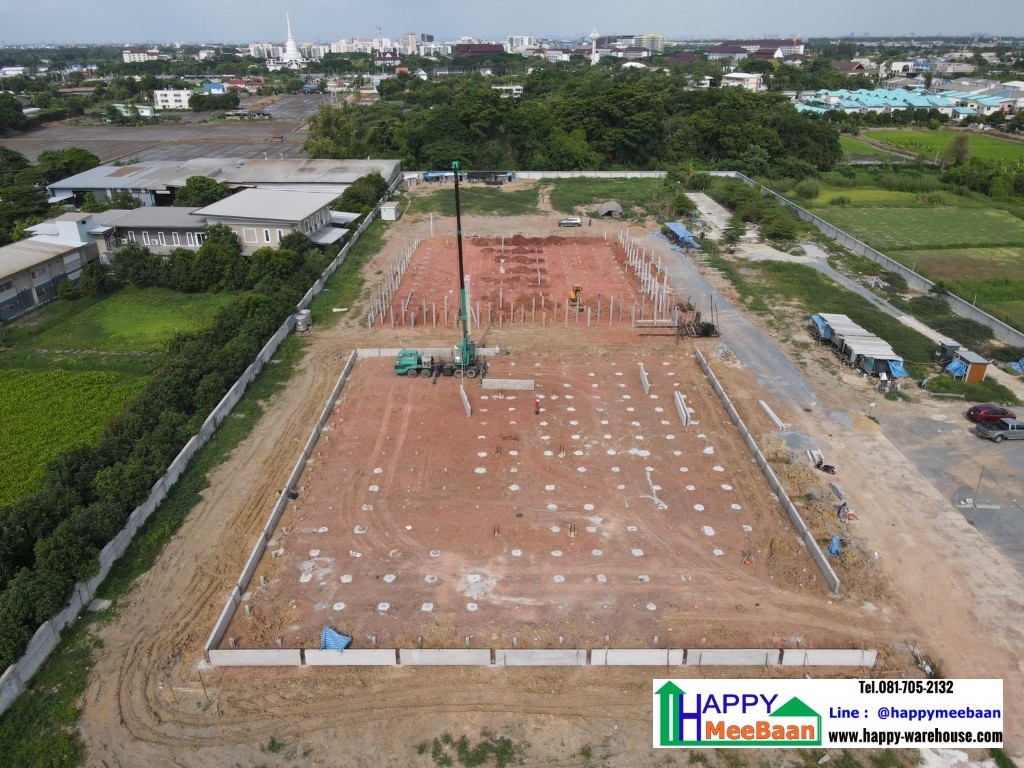

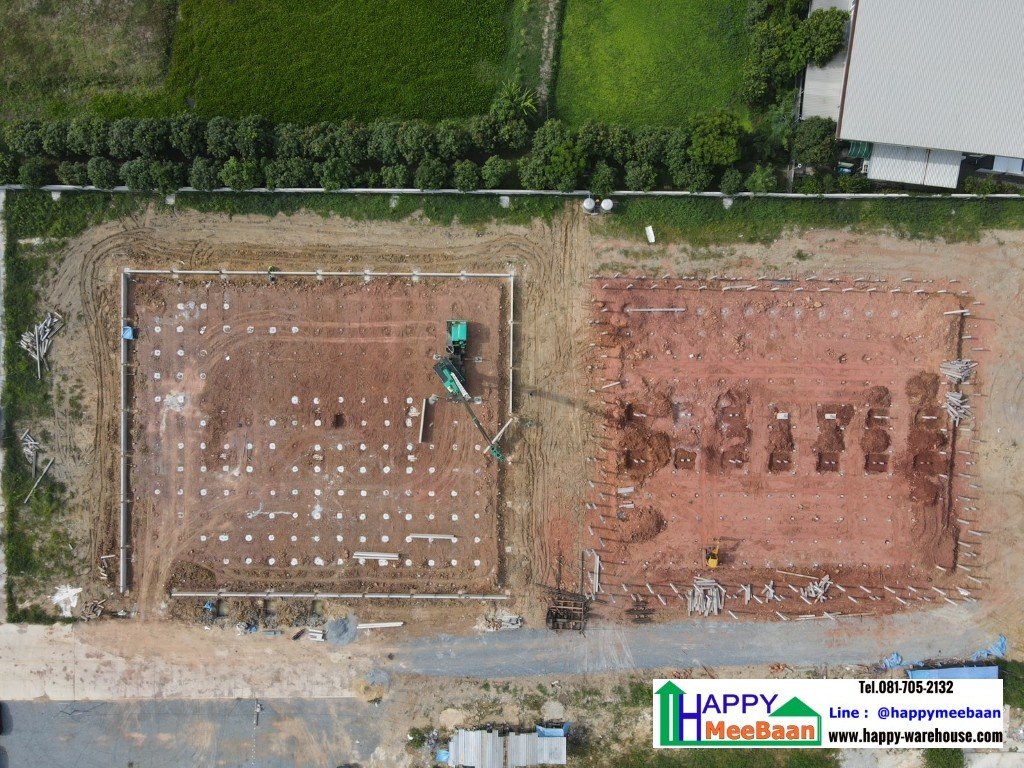

Driving piles in a dense grid pattern

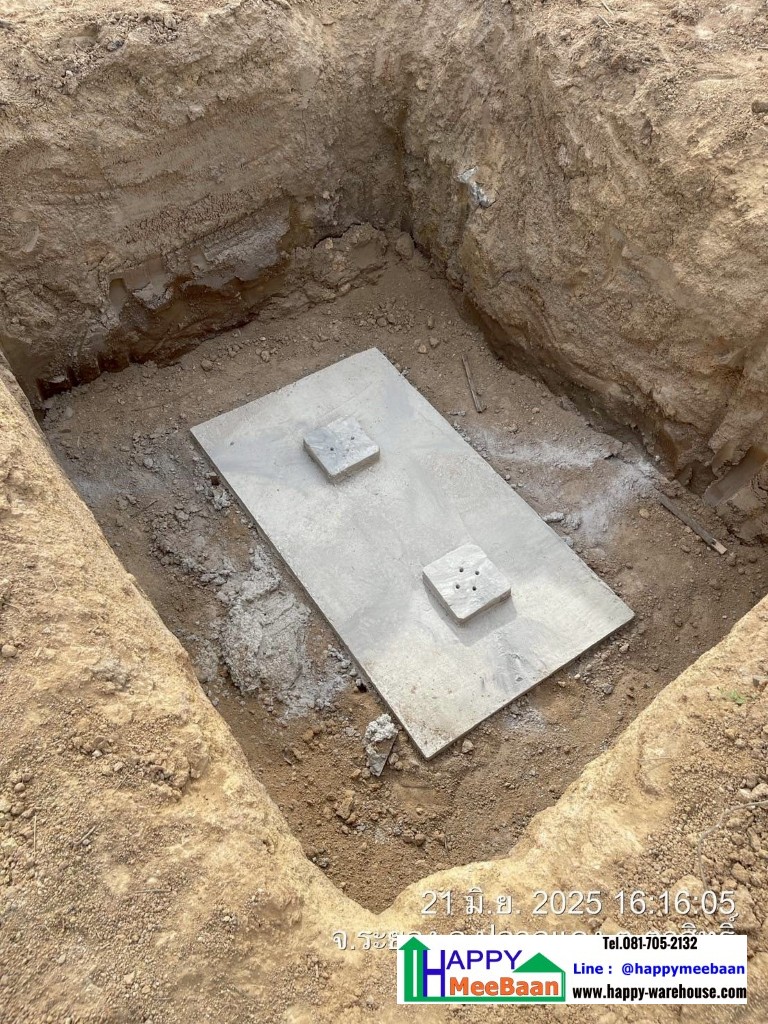

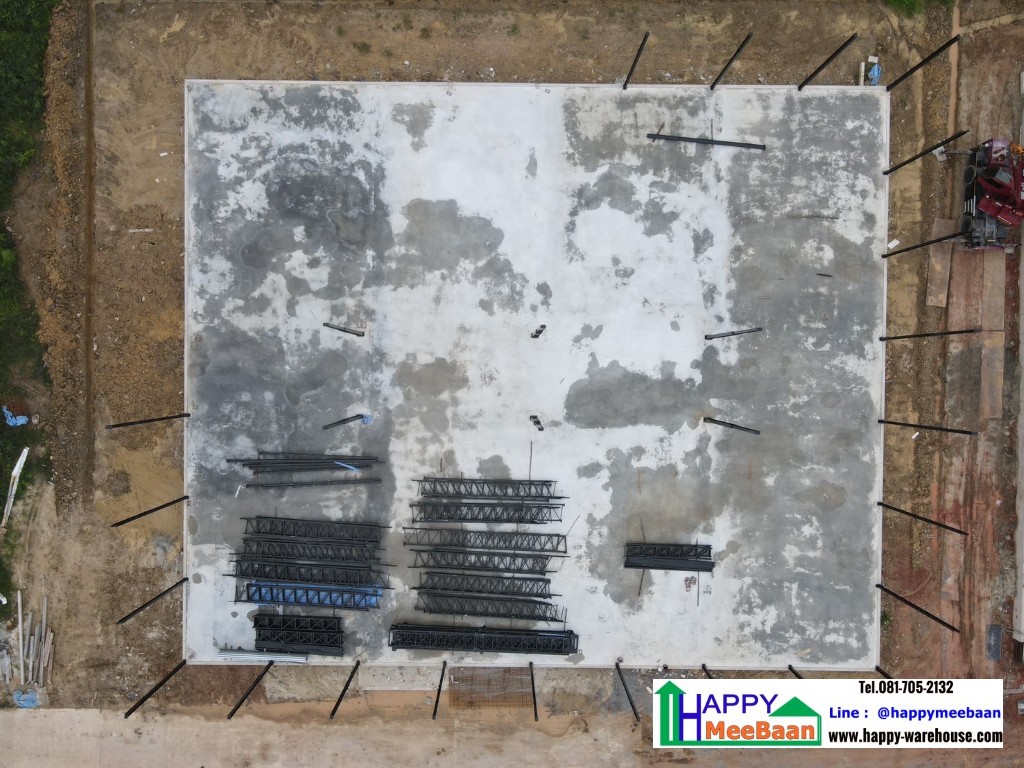

Installing factory-made precast foundation components

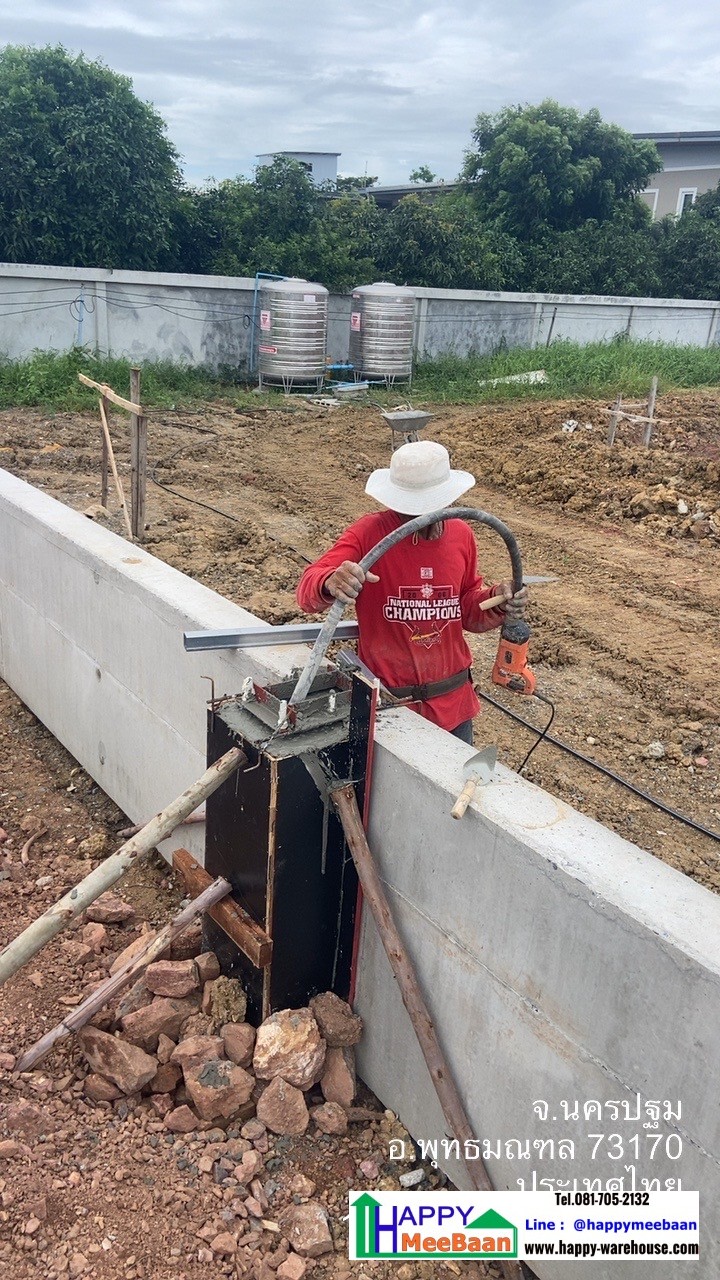

Grouting all joints to create a monolithic structure
Advantages
Excellent quality control due to factory production
Reduce on-site construction time by 30–40%
Minimizes long-term settlement issues
Ideal for temperature-controlled warehouses requiring a stable and level floor
Limitations
Requires proper transport planning and crane operations
Precise leveling and alignment must be maintained

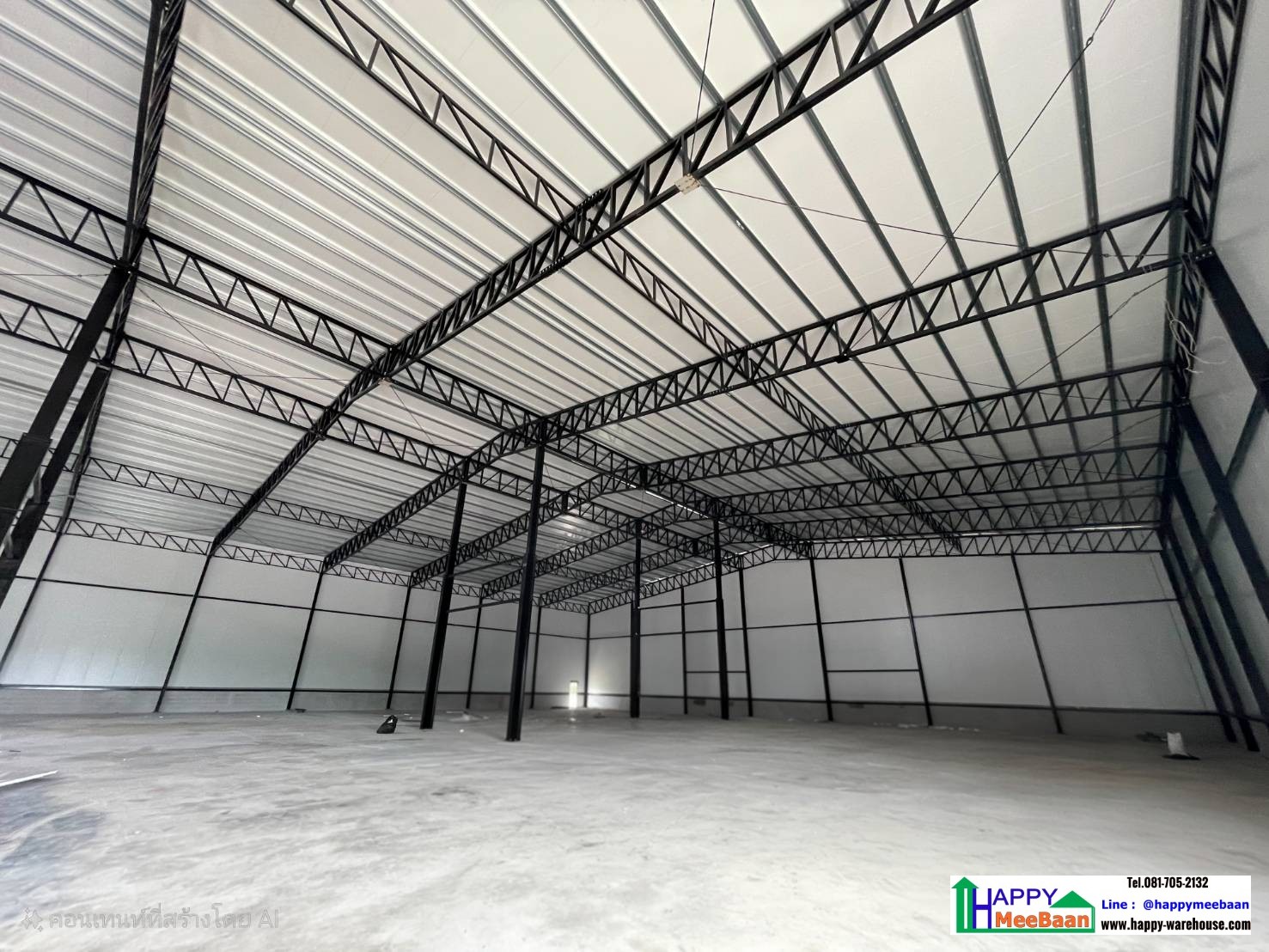

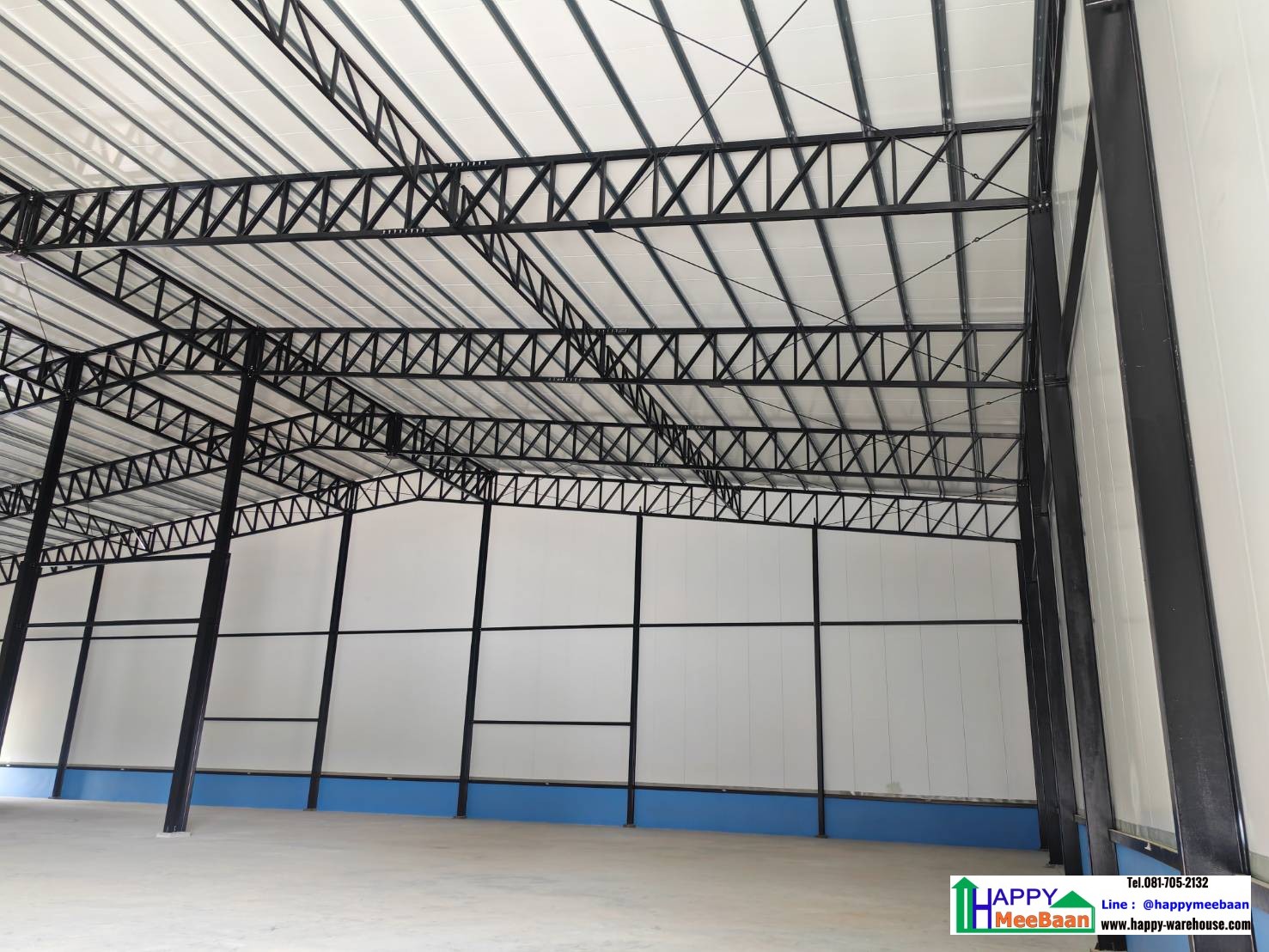

Prefabricated Structural System + EPS Sandwich Panel Wall/Roof System
Construction Process

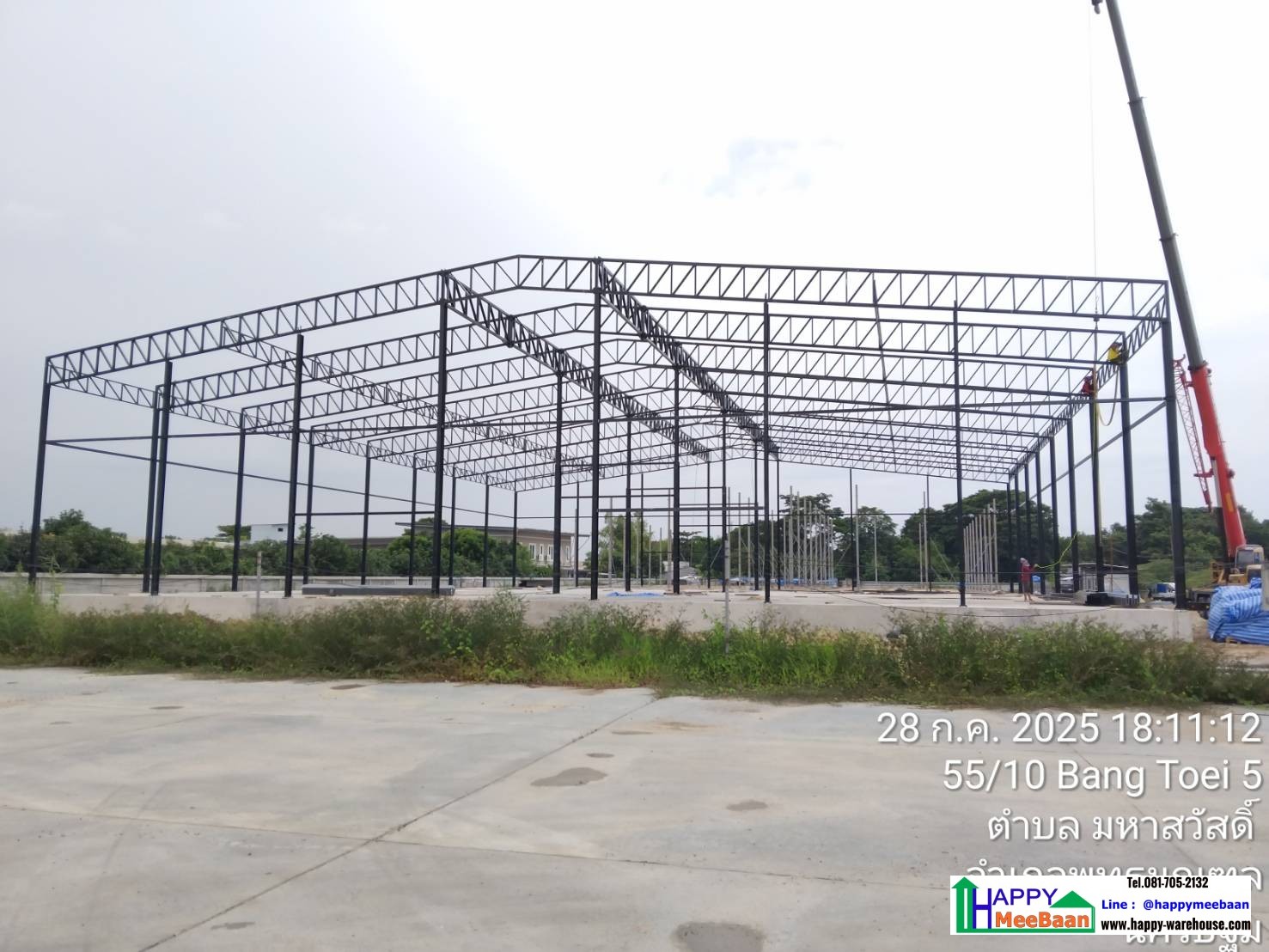

Fabrication of columns, beams, and trusses in factory
Quality inspection before transportation

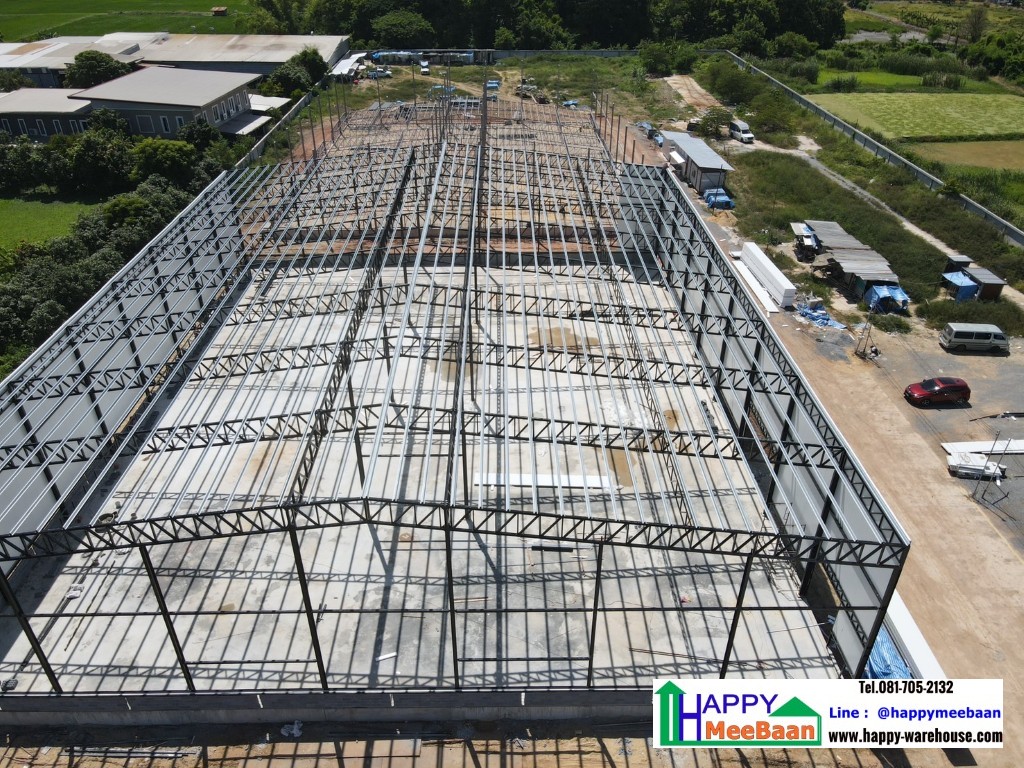

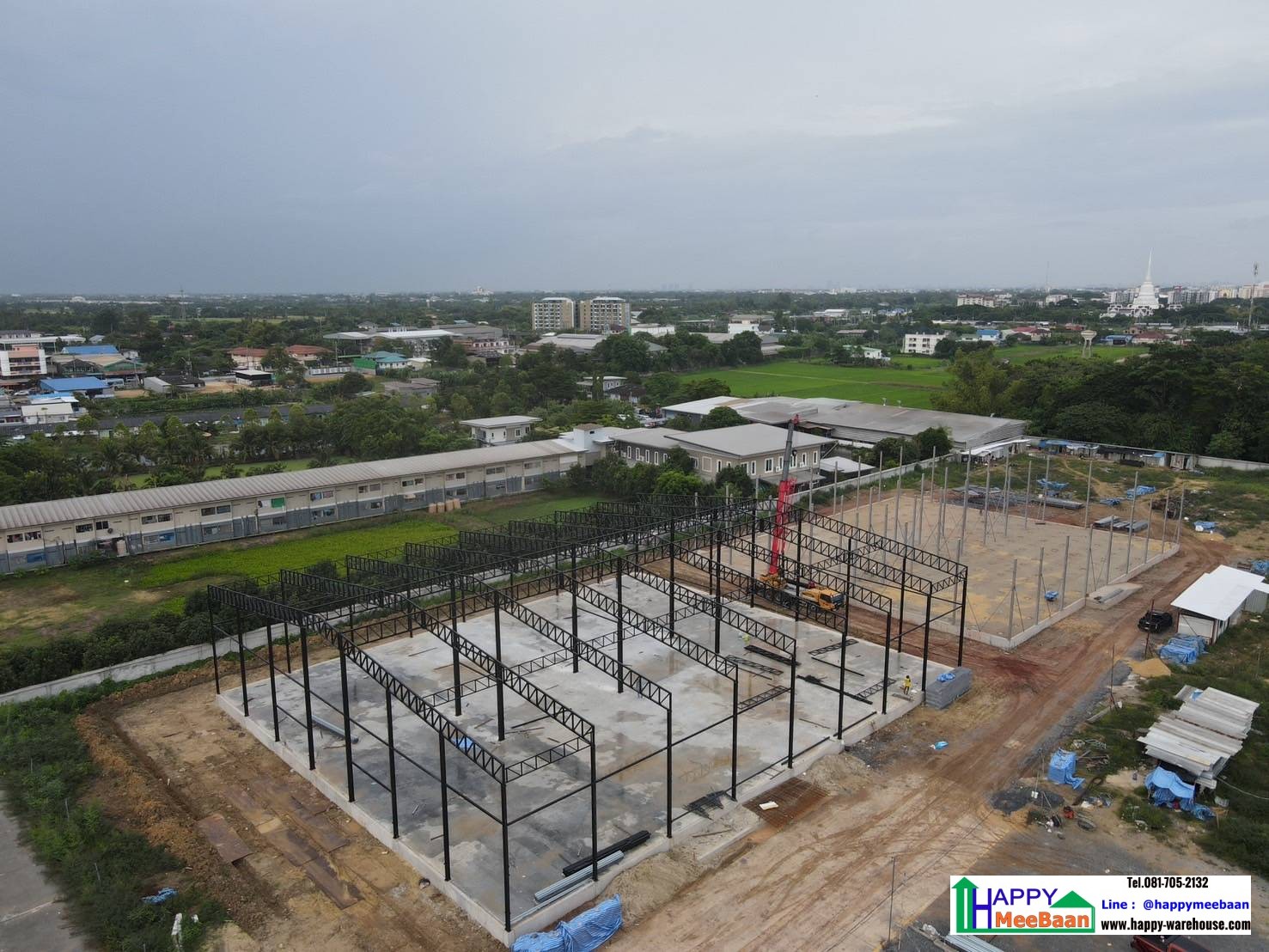

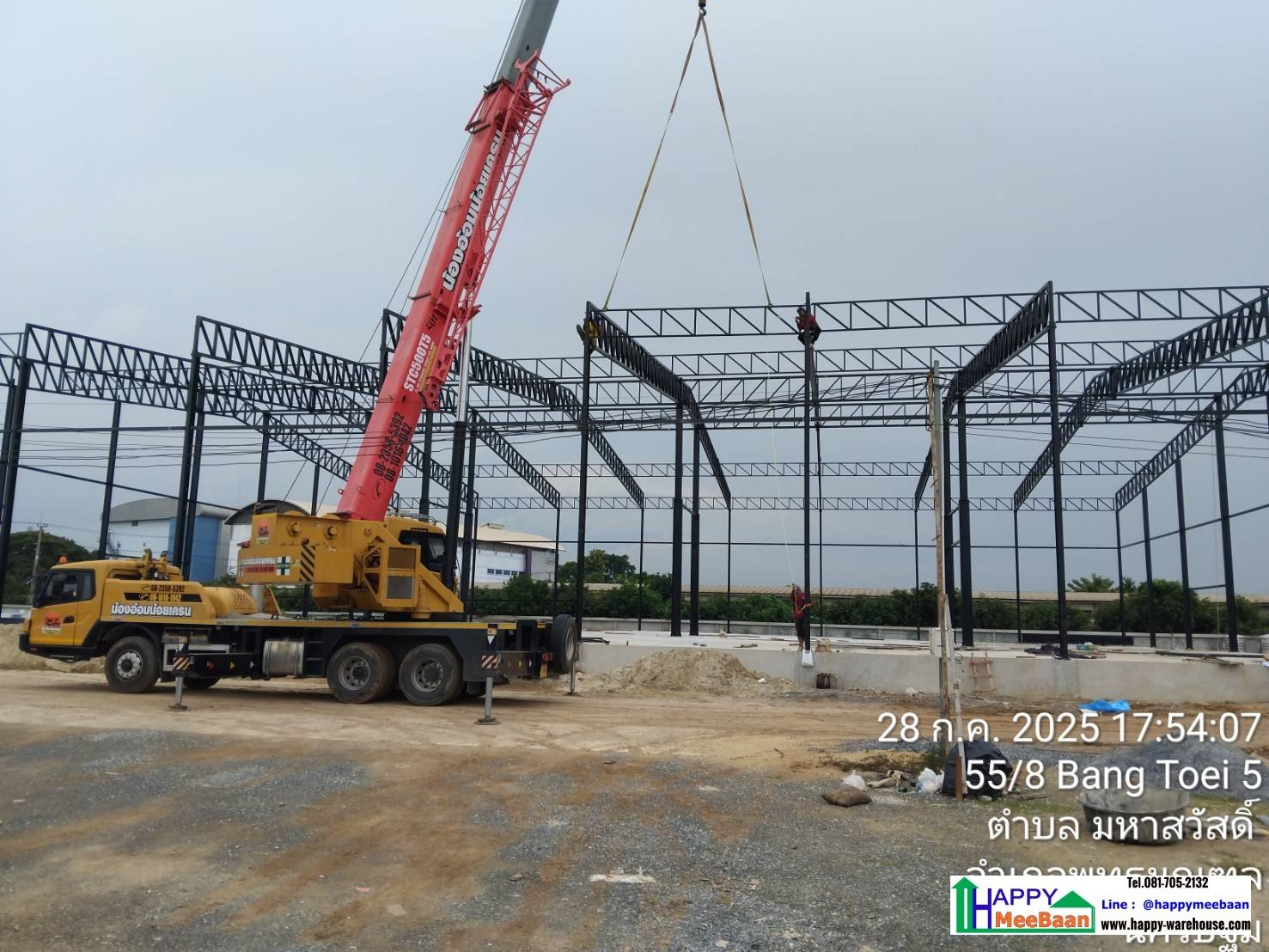

Lifting and installation on-site by crane

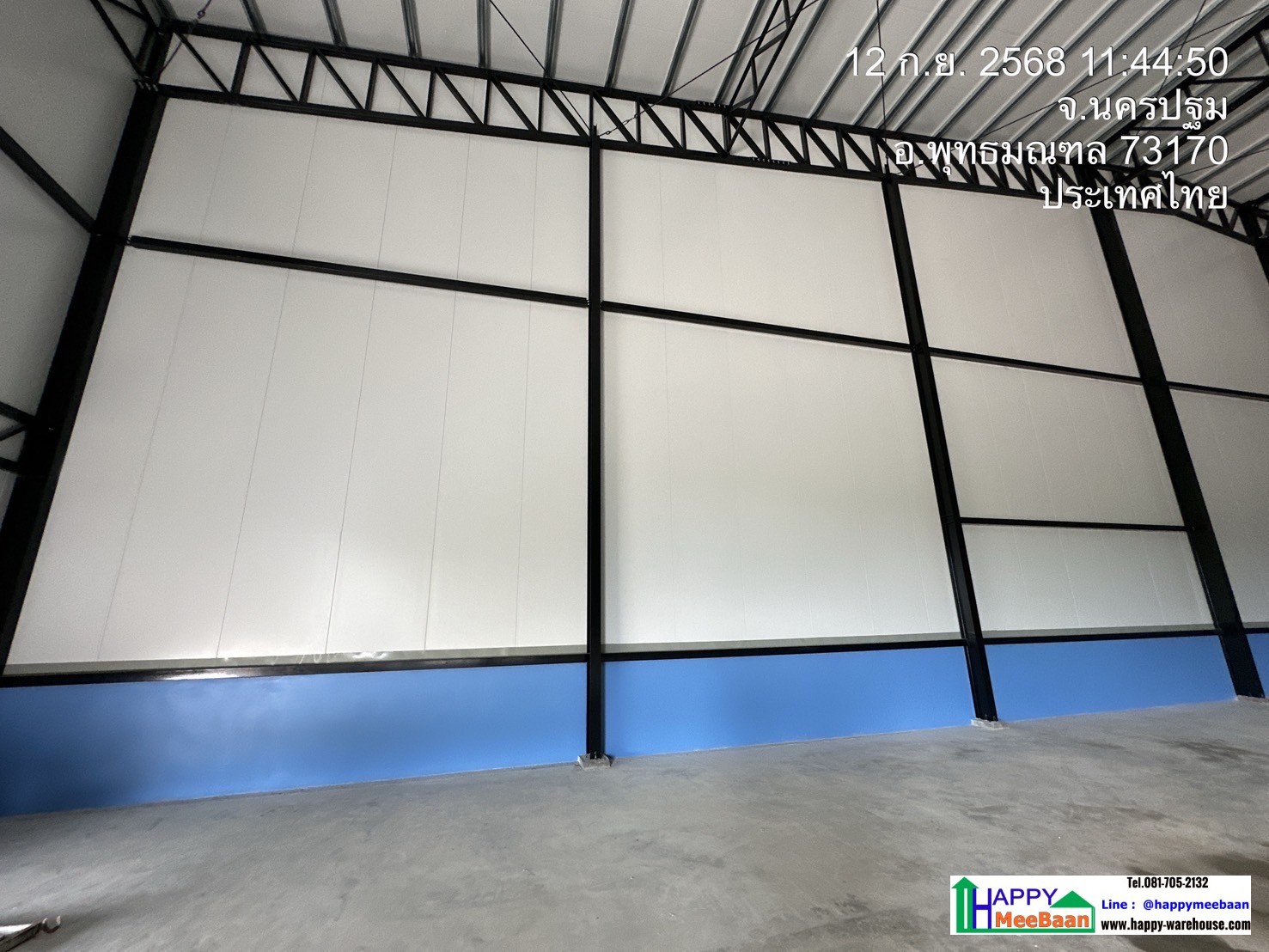

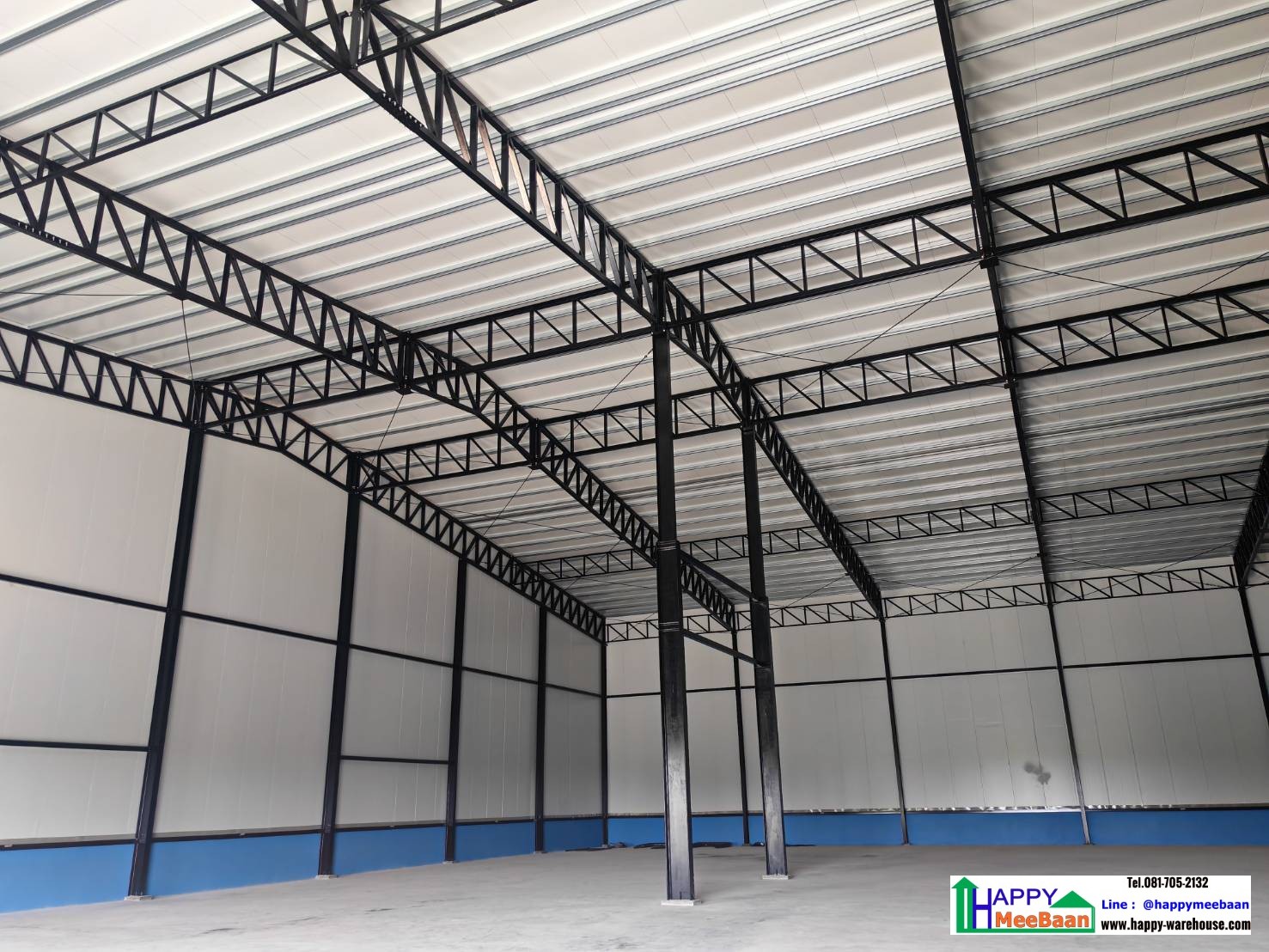

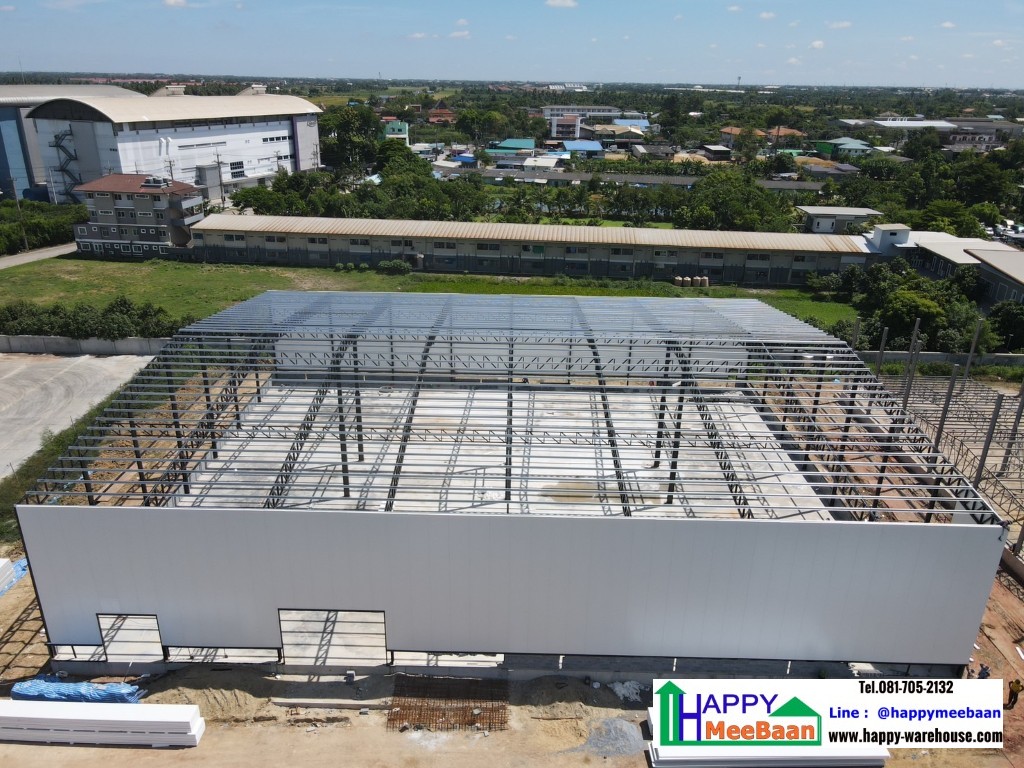

Installation of EPS Sandwich Panel walls and roofing
Sealing all joints with high-quality sealant to prevent heat leakage and moisture intrusion
Advantages of Prefabricated Structure
Fast construction timeline
Reduces installation errors due to factory-controlled production
Clean and precise assembly
Lighter weight compared to conventional structures
Advantages of EPS Sandwich Panels
Excellent thermal insulation performance
Helps maintain temperature and reduce energy consumption
Lightweight and quick to install
Low maintenance and long service life
Limitations

Requires skilled installation teams
Incorrect screw placement can cause leakage
Panels must be handled carefully to avoid dents or impact damage

Summary

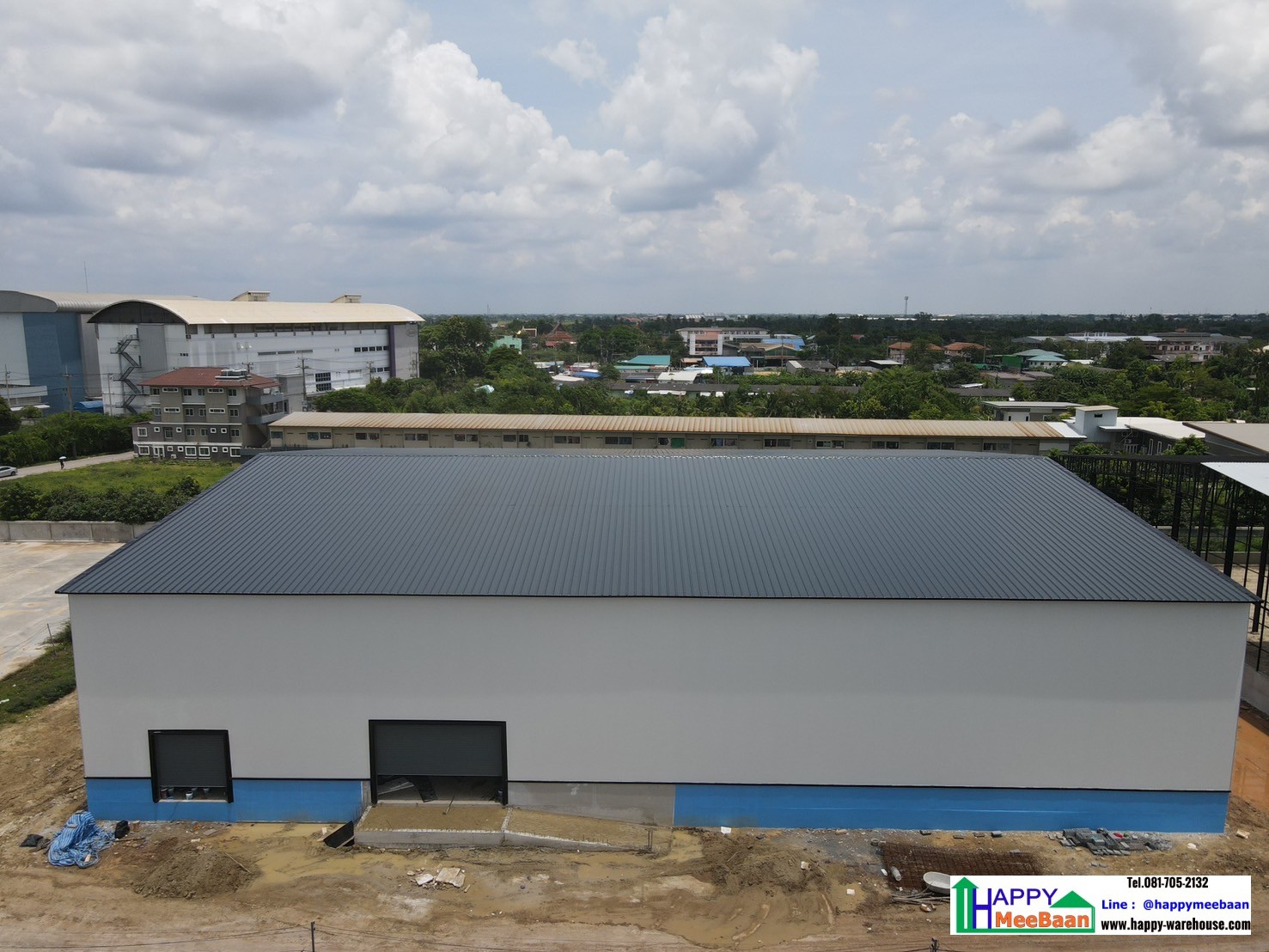

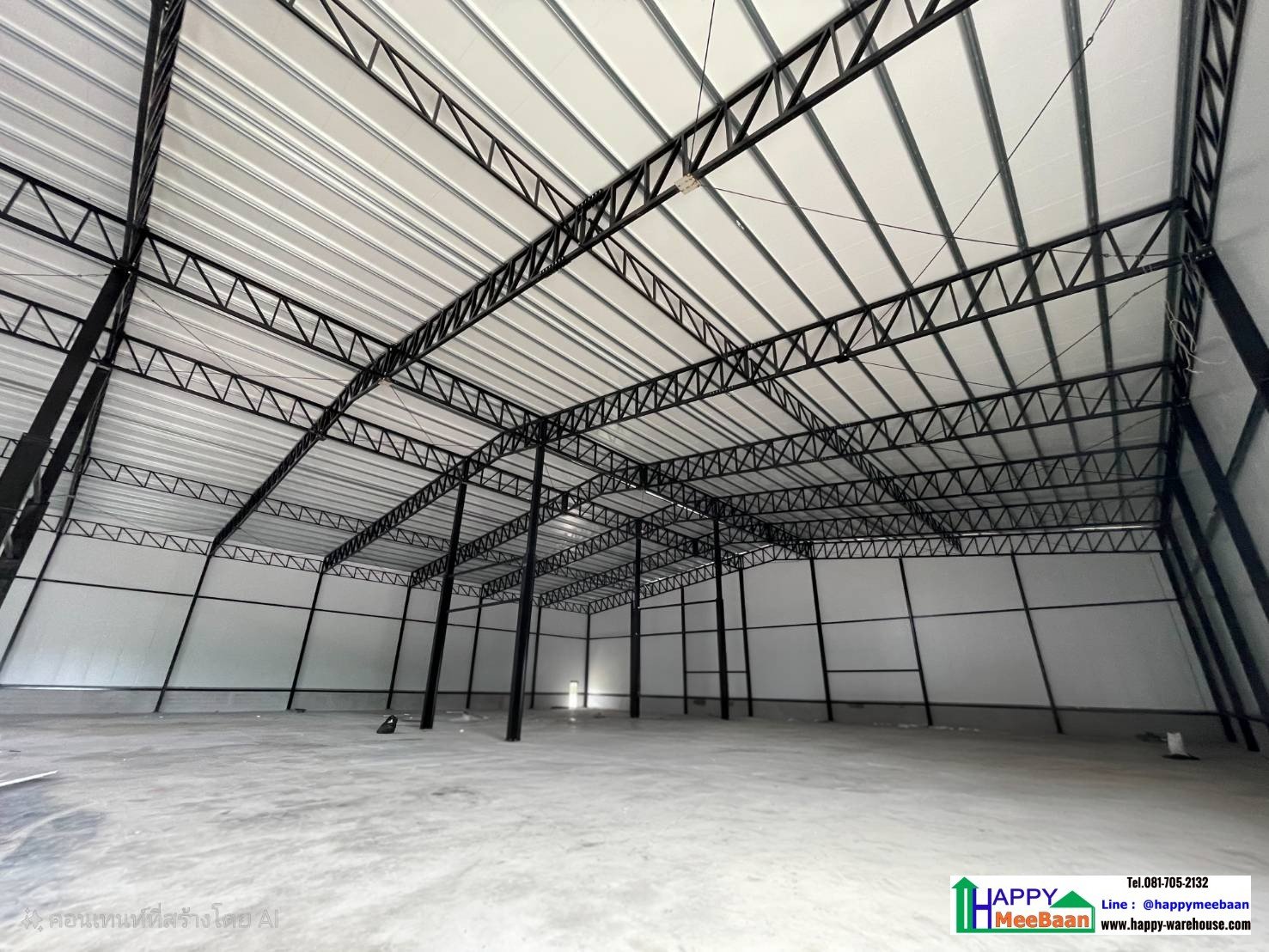

This 1,920 sq.m. temperature-controlled warehouse is designed for high efficiency, using a prefabricated steel structure combined with EPS Sandwich Panel roofing and walls. The system provides excellent thermal insulation, fast installation, and cost-effective energy performance.
With a Precast foundation + high-density pile grid supporting 1 ton/sq.m., the facility is ideal for storing pharmaceuticals, medical products, and any temperature-sensitive goods requiring a highly stable environment.
